FAG HC61905-2RSR>N

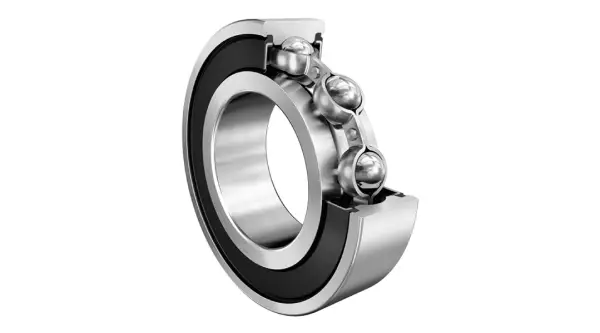

Deep groove ball bearing HC619..-2RSR, Hybrid bearing, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

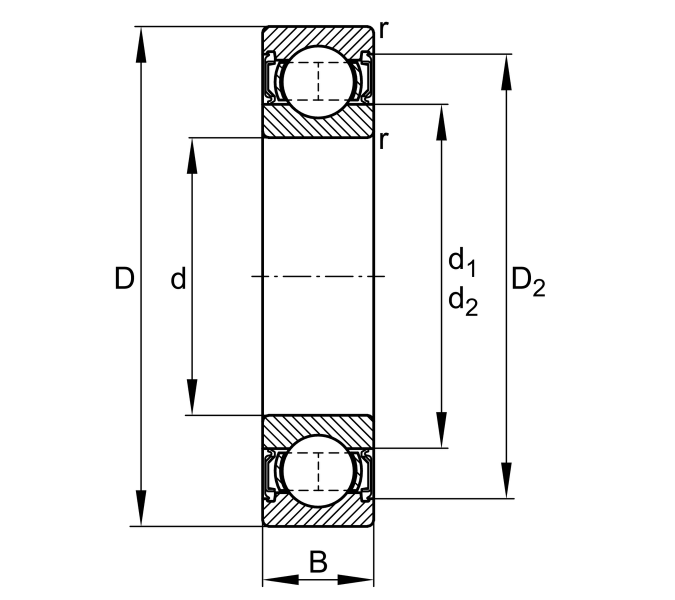

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
42 mm
Outside diameter
B
9 mm
Width
Cr
7,900 N
Basic dynamic load rating, radial
C0r
5,200 N
Basic static load rating, radial
Cur
206 N
Fatigue load limit, radial
CG
8,900 1/min
Limiting speed
≈m
0.044 kg
Weight
Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
da min
40 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
