FAG HMZ30/1320
Shaft Nut
Shaft nut HMZ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

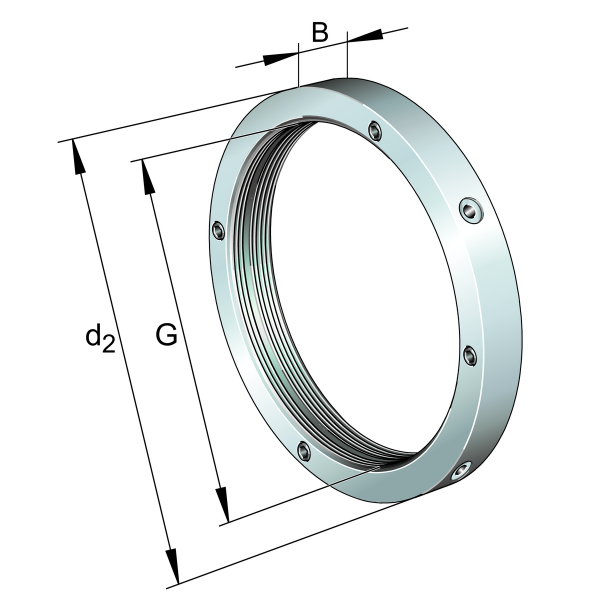

Main Dimensions & Performance Data
G
Tr1320X8
Thread
d2
1,460 mm
Outerside diameter
B
110 mm
Width
≈m
257 kg
Weight

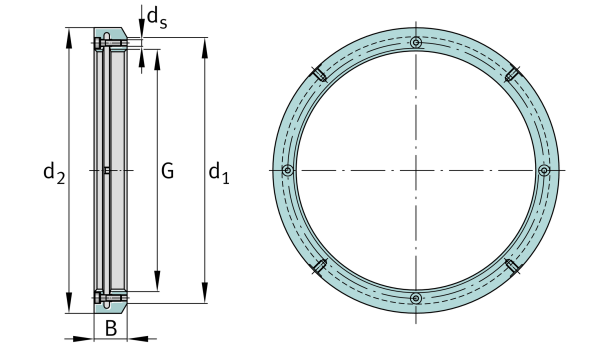

Mounting dimensions
d1
1,405 mm
Chamfer diameter
ds
M24
Thread locking bolt
