FAG KT711
Axial-Tapered Roller Bearings

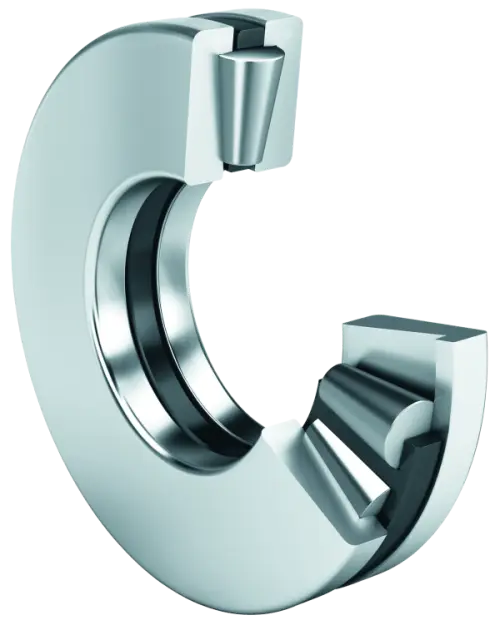

Axial tapered roller bearing KT-SERIES, single direction
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

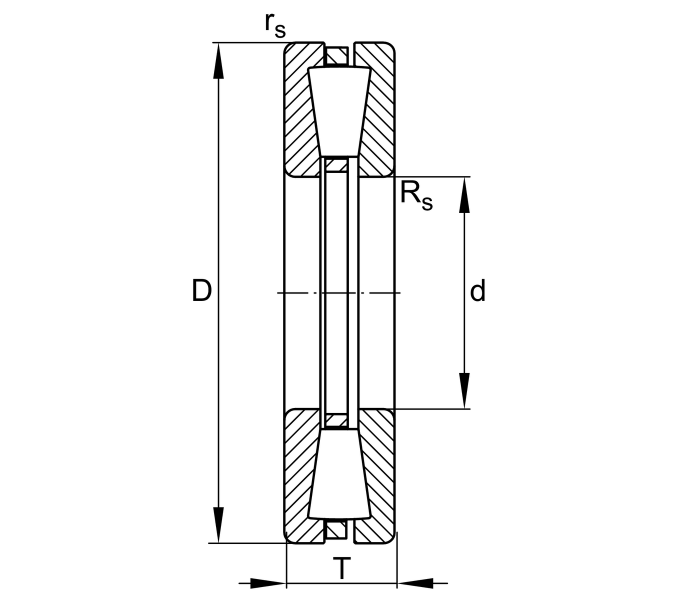

Main Dimensions & Performance Data
d
177.8 mm
Bore diameter
D
368.3 mm
Outside diameter
T
82.55 mm
Height
Ca*
3,400,000 N
Basic dynamic load rating, axial, according to ABEC/RBEC 8-1170
C0a
10,400,000 N
Basic static load rating, axial
Cua
870,000 N
Fatigue load limit, axial
CG
560 1/min
Limiting speed
≈m
43.3 kg
Weight
