FAG KT811-MPA
Axial-Tapered Roller Bearings
Axial tapered roller bearing KT-SERIES, single direction
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

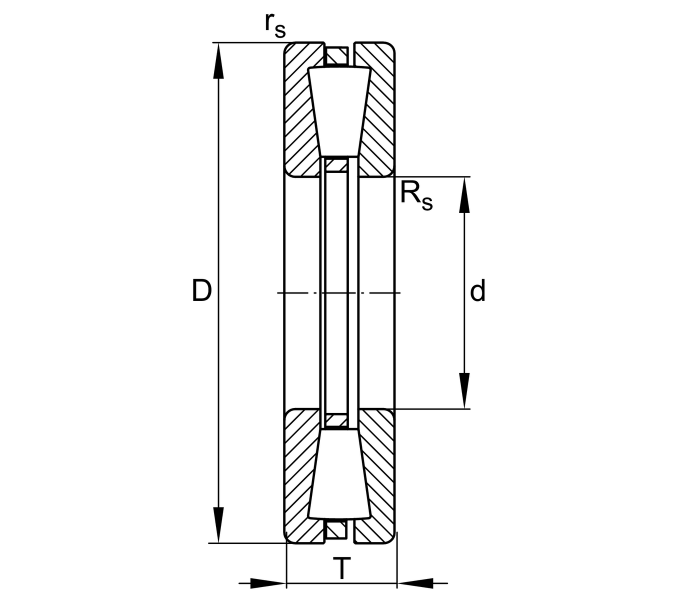

Main Dimensions & Performance Data
d
203.2 mm
Bore diameter
D
419.1 mm
Outside diameter
T
92.075 mm
Height
Ca*
4,150,000 N
Basic dynamic load rating, axial, according to ABEC/RBEC 8-1170
C0a
12,300,000 N
Basic static load rating, axial
Cua
990,000 N
Fatigue load limit, axial
CG
935 1/min
Limiting speed
≈m
64.8 kg
Weight
