FAG MS31/1000
Retainers
Securing plate MS, locknut, DIN5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

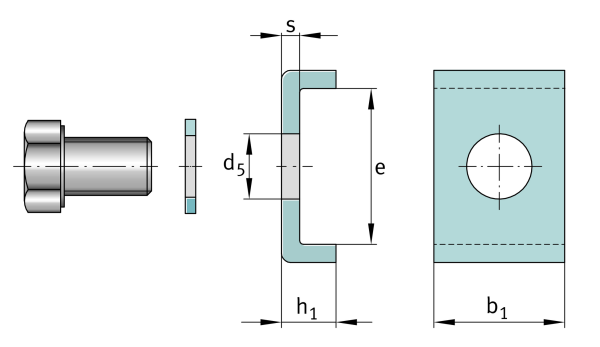

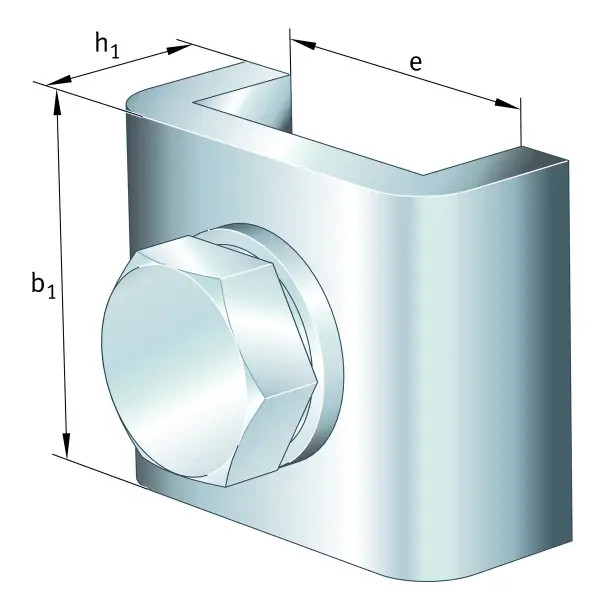

Main Dimensions & Performance Data
b1
70 mm
Length retaining ring
e
88 mm
Width inner retaining ring
h1
21 mm
Hight retaining ring
≈m
0.744 kg
Weight

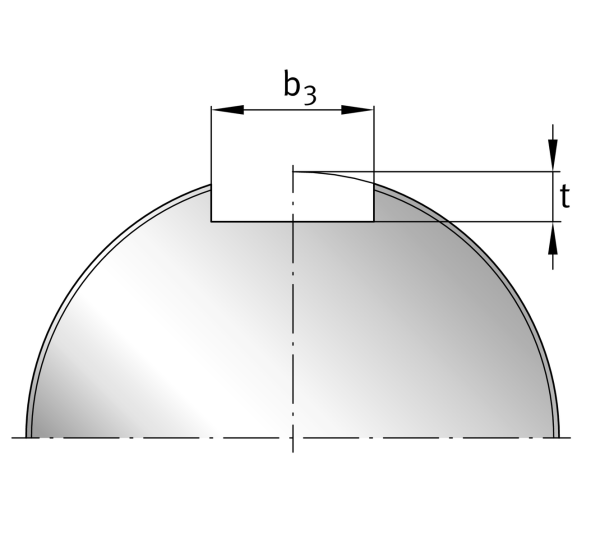

Mounting dimensions
b3
72 mm
Width retaining slot
t
16 mm
Hight retaining slot
