FAG NN3021-D-K-TVP-SP-XL
Super precision cylindrical roller bearings NN30..-D-K-TVP-SP, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

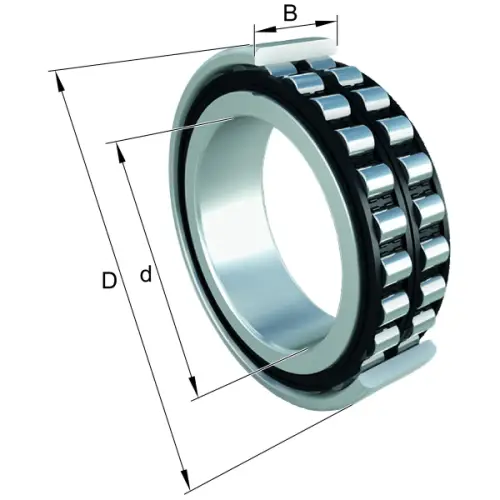

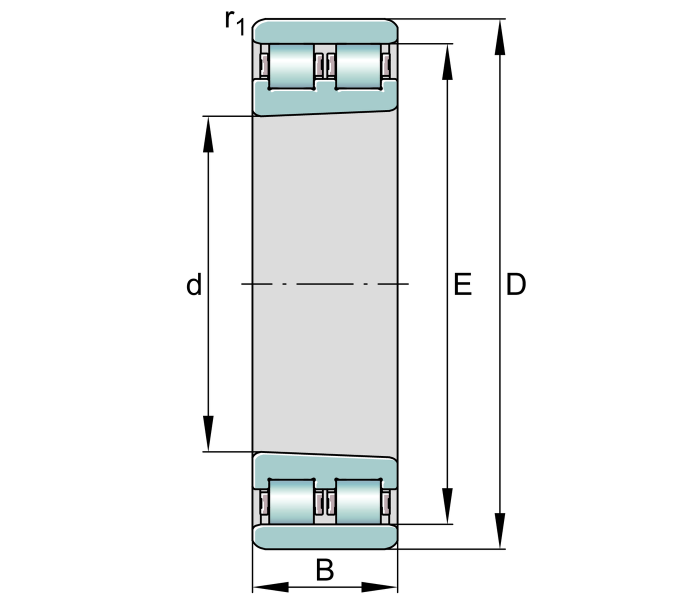

Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
160 mm
Outside diameter
B
41 mm
Width
Cr
226,000 N
Basic dynamic load rating, radial
C0r
310,000 N
Basic static load rating, radial
Cur
49,000 N
Fatigue load limit, radial
nG Grease
6,500 1/min
Limiting speed for grease lubrication
nG Oil
7,600 1/min
Limiting speed for oil lubrication
≈m
2.673 kg
Weight

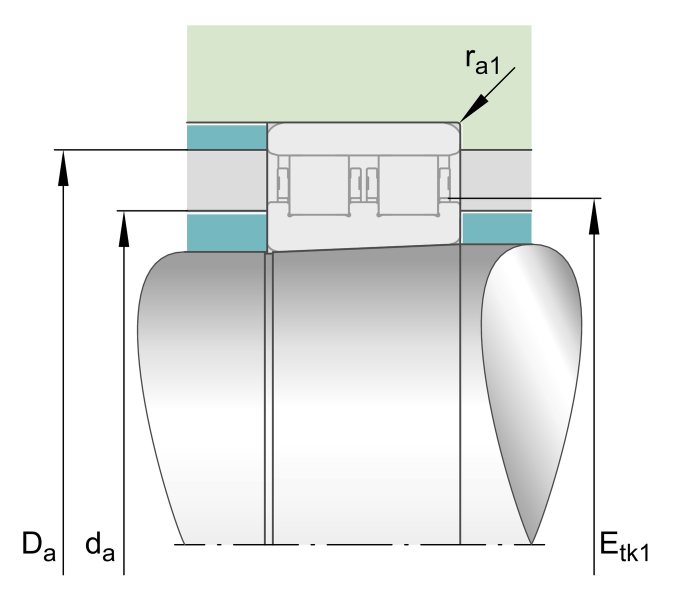

Mounting dimensions
da
120 mm
Diameter shaft shoulder
h12
Diameter shaft shoulder tolerance
Da
149 mm
Diameter of housing shoulder
H12
Shoulder diameter outer ring clearance
Etk 1 nom
143.5 mm
Injection pitch diameter min
ra1 max
2 mm
Maximum recess radius
