FAG S6007-2RSR-FD

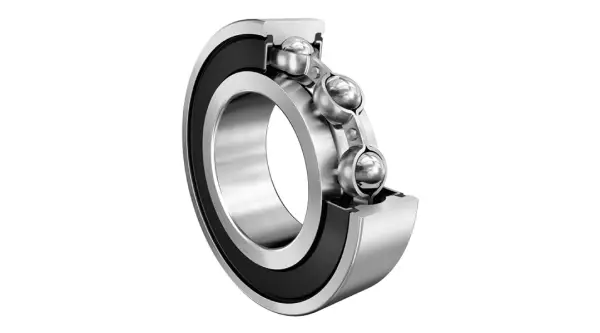

Deep groove ball bearing S60..-2RS-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

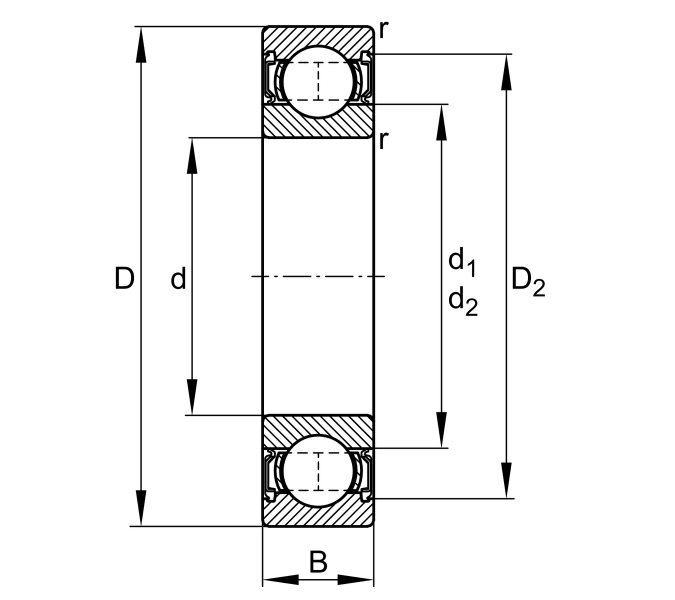

Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
62 mm
Outside diameter
B
14 mm
Width
Cr
13,600 N
Basic dynamic load rating, radial
C0r
8,240 N
Basic static load rating, radial
Cur
720 N
Fatigue load limit, radial
CG
4,300 1/min
Limiting speed
≈m
0.155 kg
Weight

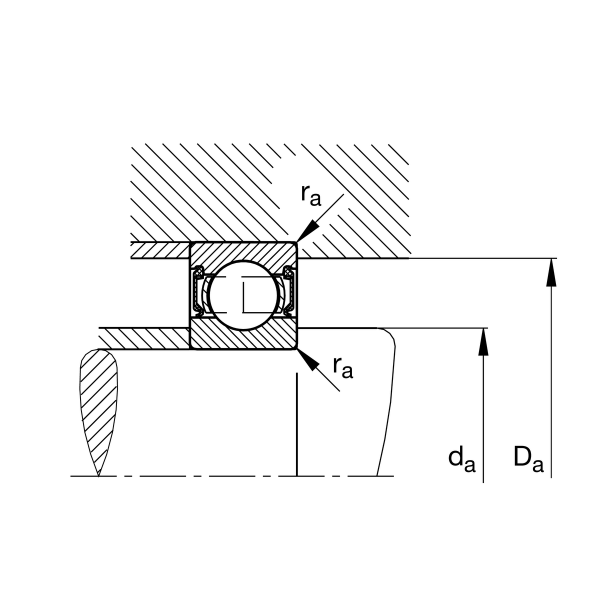

Mounting dimensions
da min
39.6 mm
Minimum diameter shaft shoulder
da min
57.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
