FAG S6305-2RSR-FD

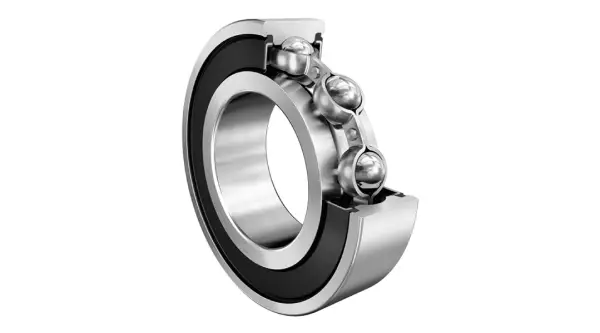

Deep groove ball bearing S63..-2RSR-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

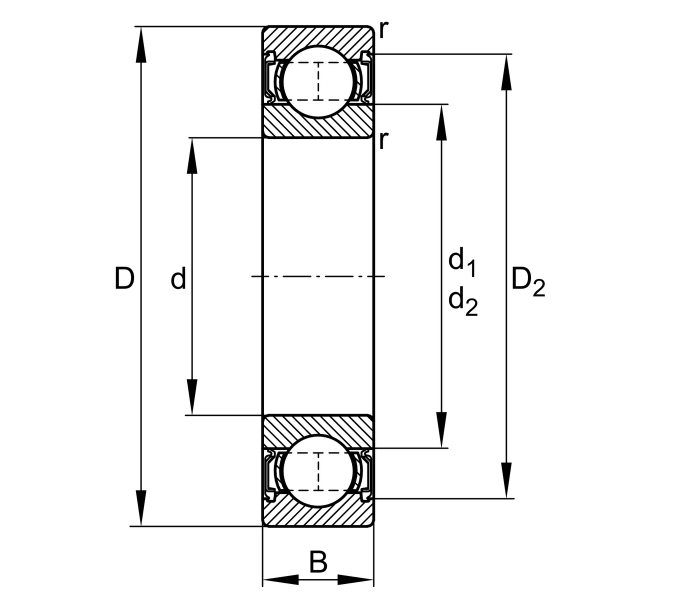

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
B
17 mm
Width
Cr
17,500 N
Basic dynamic load rating, radial
C0r
9,000 N
Basic static load rating, radial
Cur
960 N
Fatigue load limit, radial
CG
4,700 1/min
Limiting speed
≈m
0.245 kg
Weight
Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da min
55 mm
Maximum diameter of housing shoulder
ra max
1.1 mm
Maximum fillet radius
