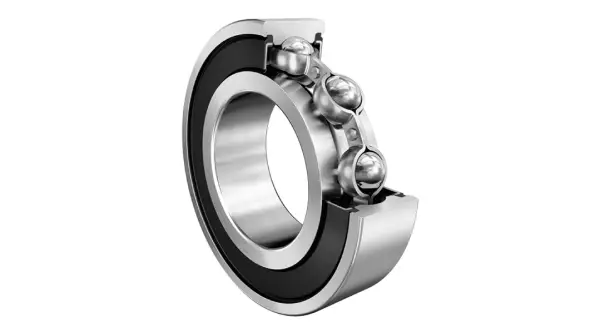

FAG S6306-2RSR-FD
Deep groove ball bearing S63..-2RSR-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

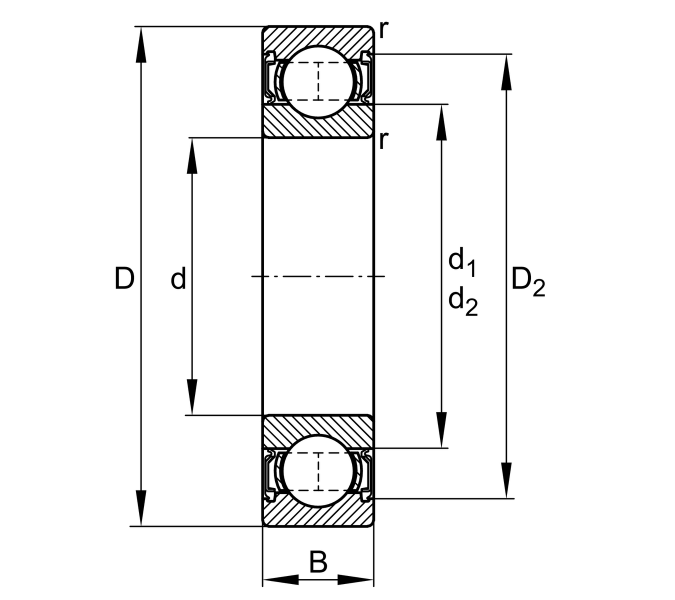

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
72 mm
Outside diameter
B
19 mm
Width
Cr
22,700 N
Basic dynamic load rating, radial
C0r
12,000 N
Basic static load rating, radial
Cur
1,290 N
Fatigue load limit, radial
CG
4,100 1/min
Limiting speed
≈m
0.32 kg
Weight
Mounting dimensions
da min
37 mm
Minimum diameter shaft shoulder
da min
65 mm
Maximum diameter of housing shoulder
ra max
1.1 mm
Maximum fillet radius
