FAG SNW22X0400
Adapter Sleeves
Adaptive Sleeve SNW, inch
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

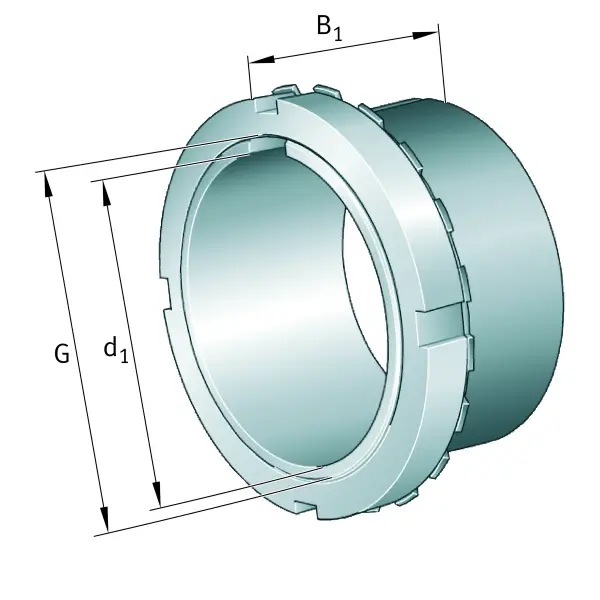

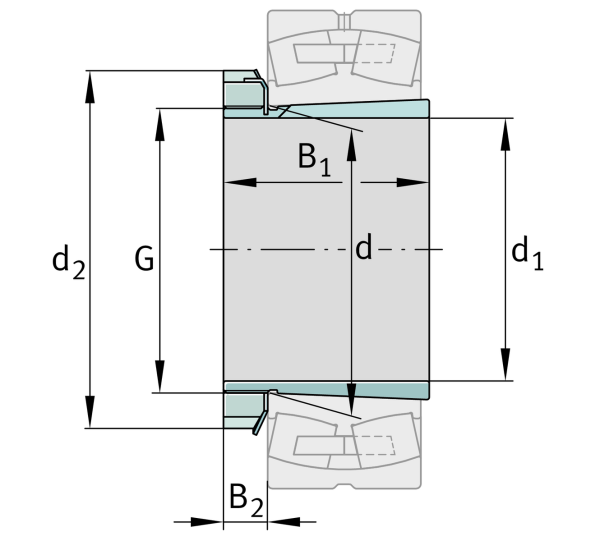

Main Dimensions & Performance Data
d1
4 in
Bore diameter (Inch)
G
4,325
Thread
12
Threads per inch
B1
3.196 in
Sleeve length (Inch)
d2
5.724 in
Outside diameter nut (Inch)
≈m
1.33 kg
Weight
