FAG UC204-12
Insert Ball Bearings and Belt Tension Pulleys

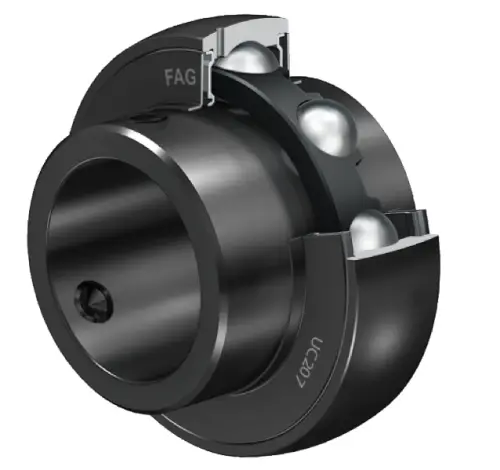

Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

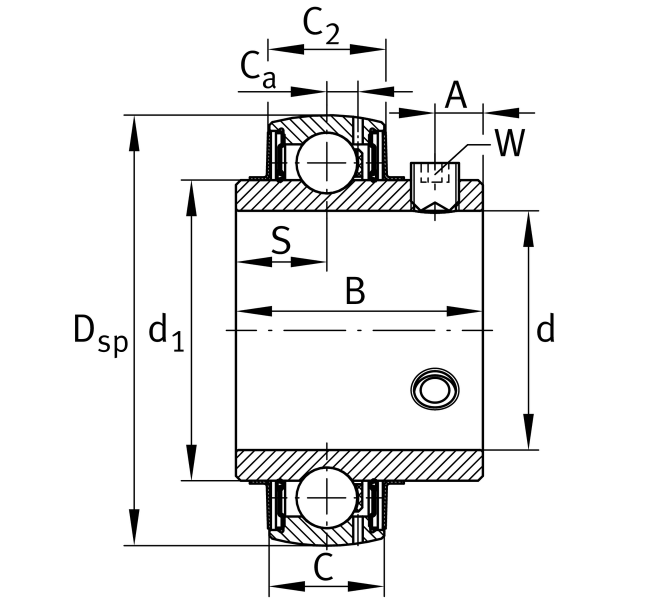

Main Dimensions & Performance Data
d
19.05 mm
Bore diameter
d
0.75 in
Bore diameter, inch
DSP
47 mm
Outside diameter
B
31 mm
Width
Cur
345 N
Fatigue load limit, radial
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
152 g
Weight
