FAG UC206-19
Insert Ball Bearings and Belt Tension Pulleys
Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

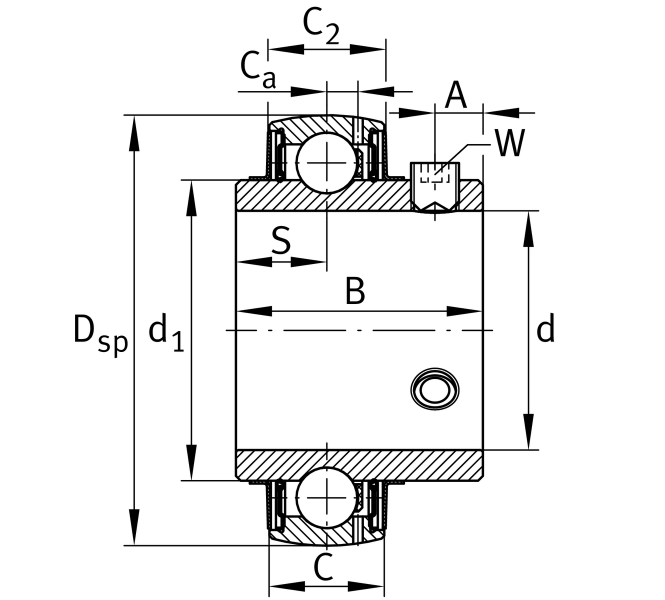

Main Dimensions & Performance Data
d
30.163 mm
Bore diameter
d
1.1875 in
Bore diameter, inch
DSP
62 mm
Outside diameter
B
38.1 mm
Width
Cur
590 N
Fatigue load limit, radial
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
292 g
Weight
