FAG UC207-20

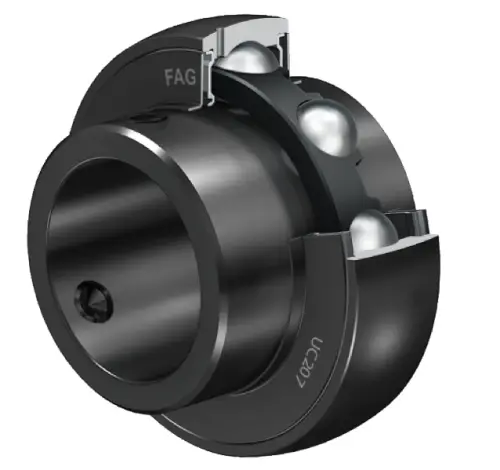

Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

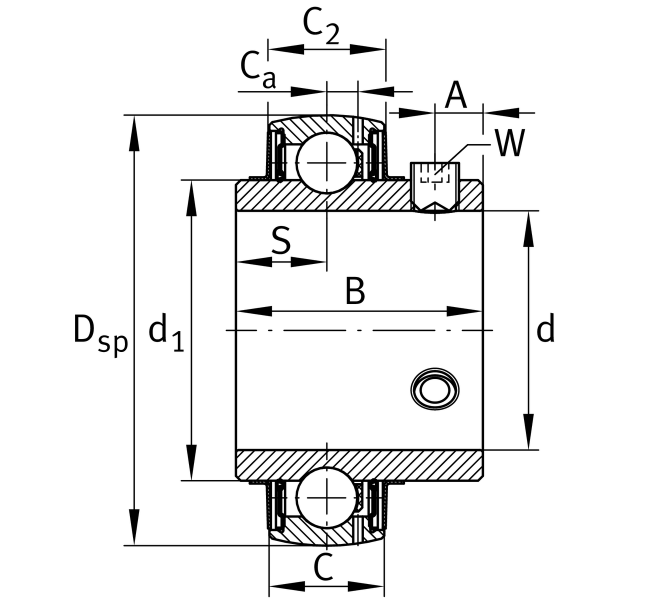

Main Dimensions & Performance Data
d
31.75 mm
Bore diameter
d
1.25 in
Bore diameter, inch
DSP
72 mm
Outside diameter
B
42.9 mm
Width
Cur
650 N
Fatigue load limit, radial
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
0.503 kg
Weight
