FAG UC213-40
Insert Ball Bearings and Belt Tension Pulleys

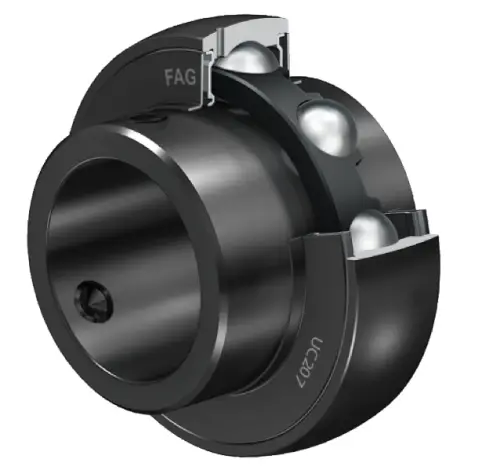

Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

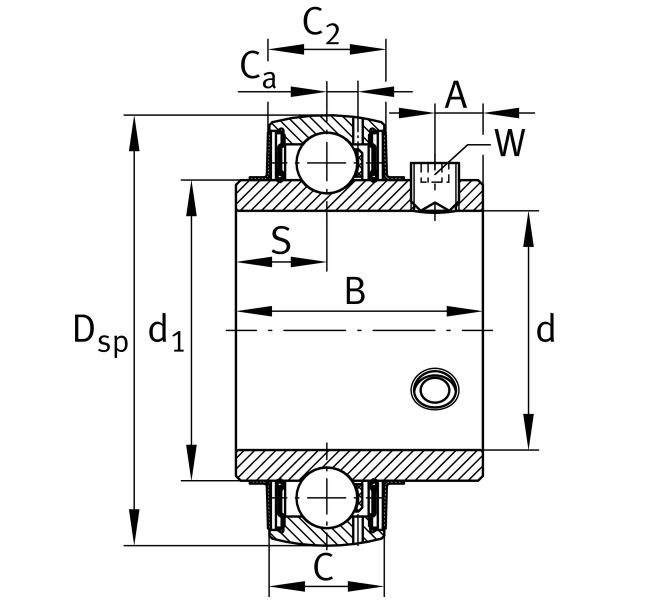

Main Dimensions & Performance Data
d
63.5 mm
Bore diameter
d
2.5 in
Bore diameter, inch
DSP
120 mm
Outside diameter
B
65.1 mm
Width
Cur
2,090 N
Fatigue load limit, radial
Cr
61,000 N
Basic dynamic load rating, radial
C0r
40,000 N
Basic static load rating, radial
≈m
1.79 kg
Weight
