FAG UC215-45
Insert Ball Bearings and Belt Tension Pulleys

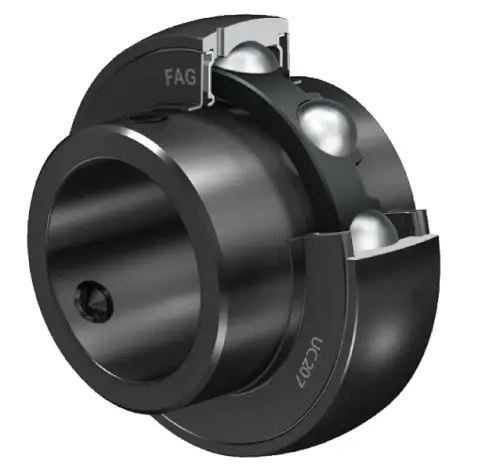

Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

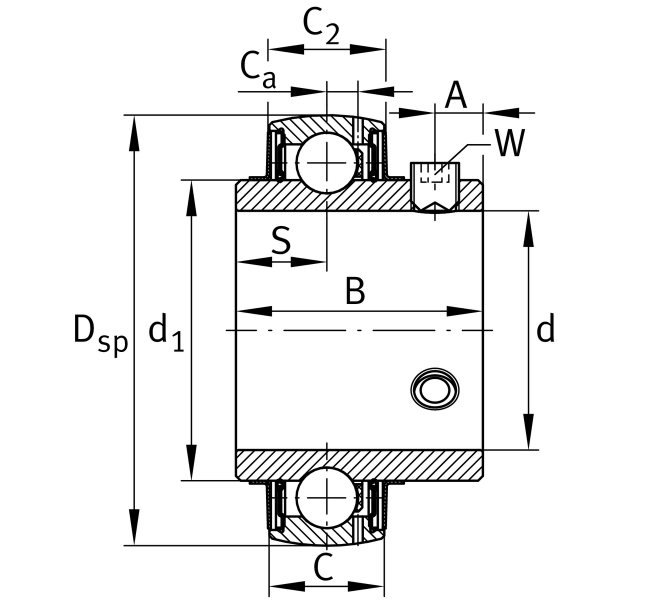

Main Dimensions & Performance Data
d
71.438 mm
Bore diameter
d
2.8125 in
Bore diameter, inch
DSP
130 mm
Outside diameter
B
77.8 mm
Width
Cur
2,300 N
Fatigue load limit, radial
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
≈m
2.39 kg
Weight
