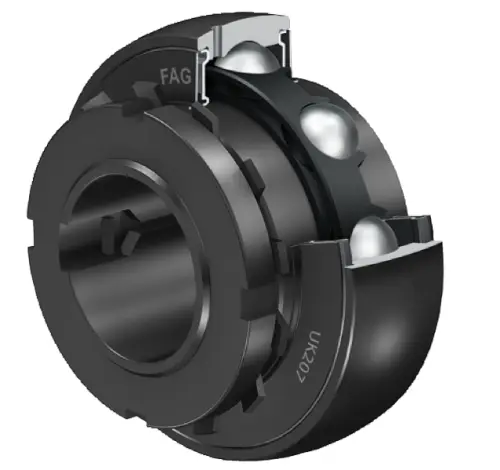

FAG UK207
Insert Ball Bearings and Belt Tension Pulleys
Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

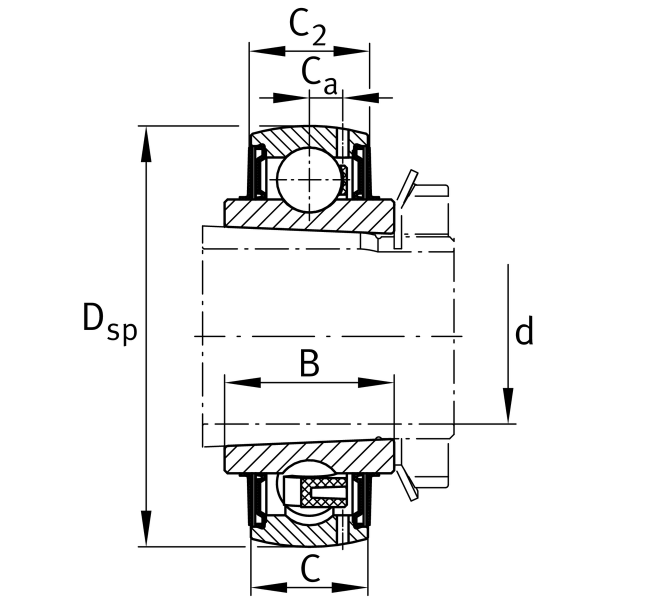

Main Dimensions & Performance Data
d
30 mm
Bore diameter
DSP
72 mm
Outside diameter
B
29 mm
Width
Cur
800 N
Fatigue load limit, radial

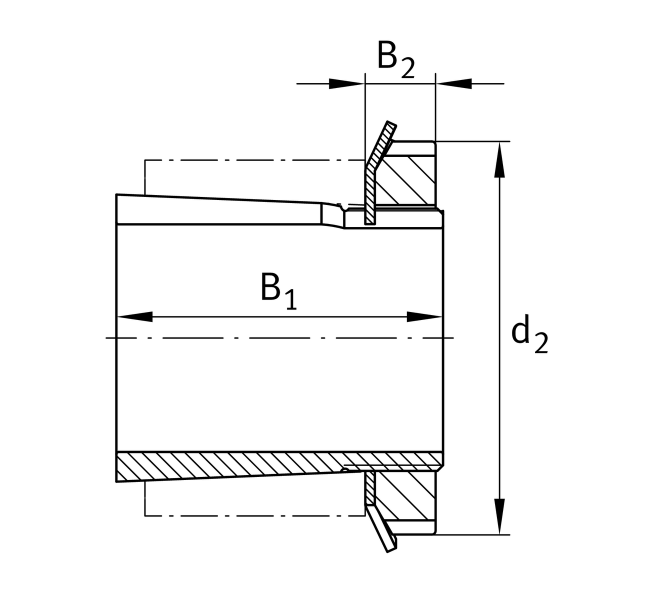

B1
43 mm
Locking collar total width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
0.54 kg
Weight
