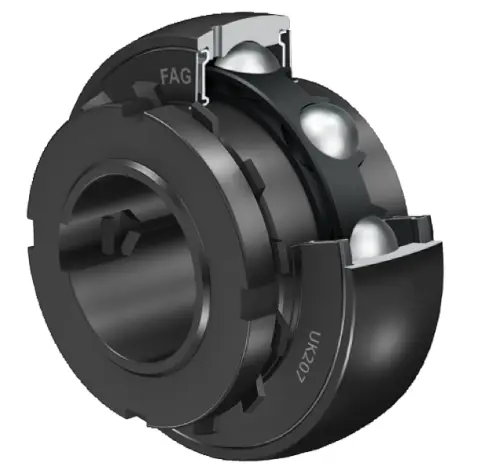

FAG UK208
Insert Ball Bearings and Belt Tension Pulleys
Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

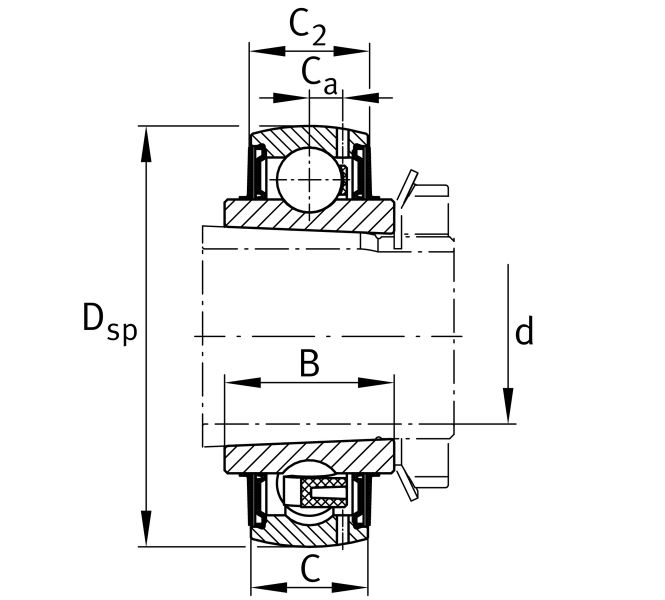

Main Dimensions & Performance Data
d
35 mm
Bore diameter
DSP
80 mm
Outside diameter
B
31 mm
Width
Cur
1,030 N
Fatigue load limit, radial

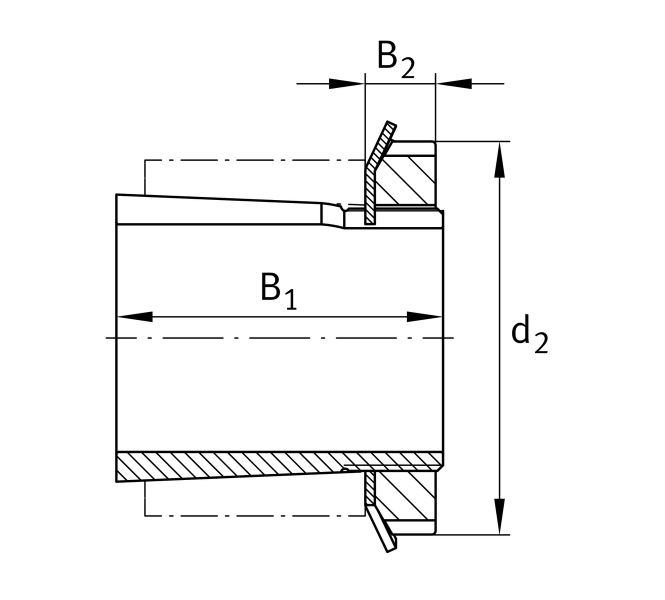

B1
46 mm
Locking collar total width
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.7 kg
Weight
