FAG UK210
Insert Ball Bearings and Belt Tension Pulleys

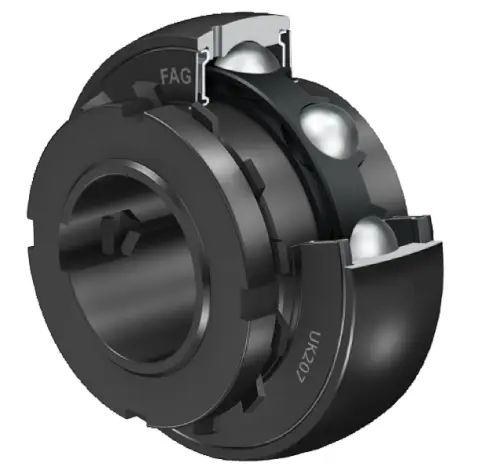

Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

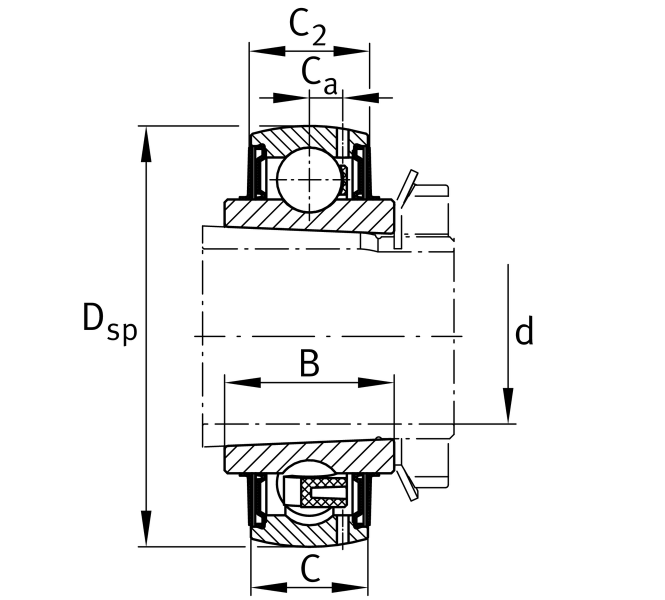

Main Dimensions & Performance Data
d
45 mm
Bore diameter
DSP
90 mm
Outside diameter
B
34 mm
Width
Cur
1,210 N
Fatigue load limit, radial

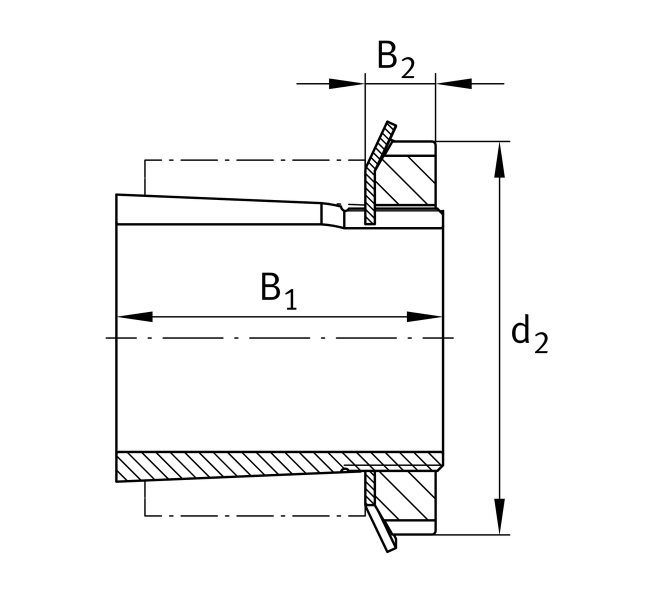

B1
55 mm
Locking collar total width
Cr
37,500 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
≈m
0.98 kg
Weight
