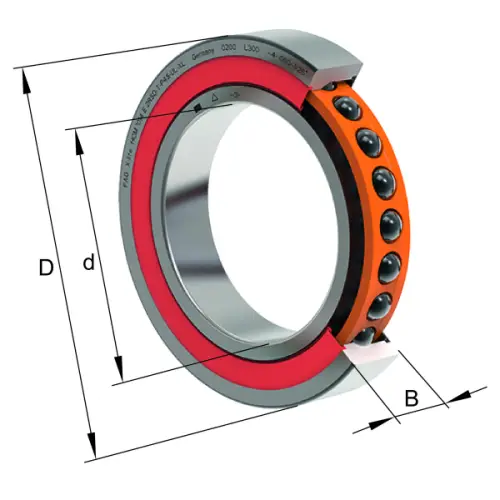

FAG VCM7020-C-2RSD-T-P4S-UL-XL
High speed spindle bearing VCM70..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, rings made from Vacrodur, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

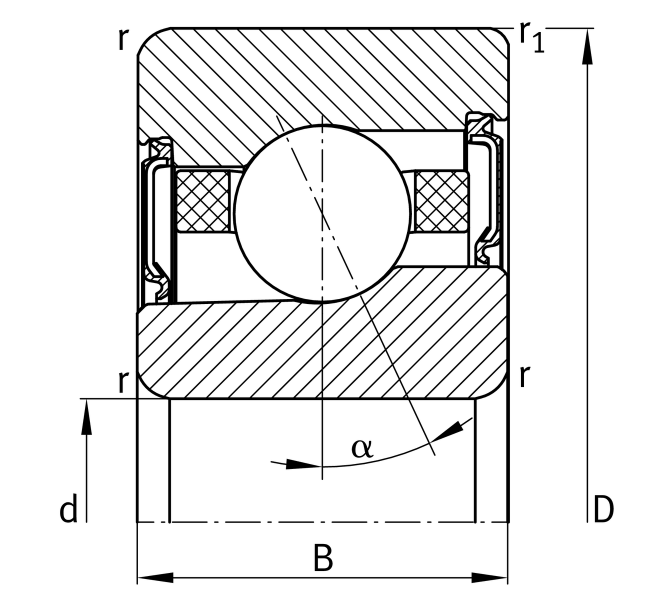

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
150 mm
Outside diameter
B
24 mm
Width
Cr
103,000 N
Basic dynamic load rating, radial
C0r
43,000 N
Basic static load rating, radial
Cur
1,970 N
Fatigue load limit, radial
nG Grease
17,000 1/min
Limiting speed for grease lubrication
≈m
1.26 kg
Weight

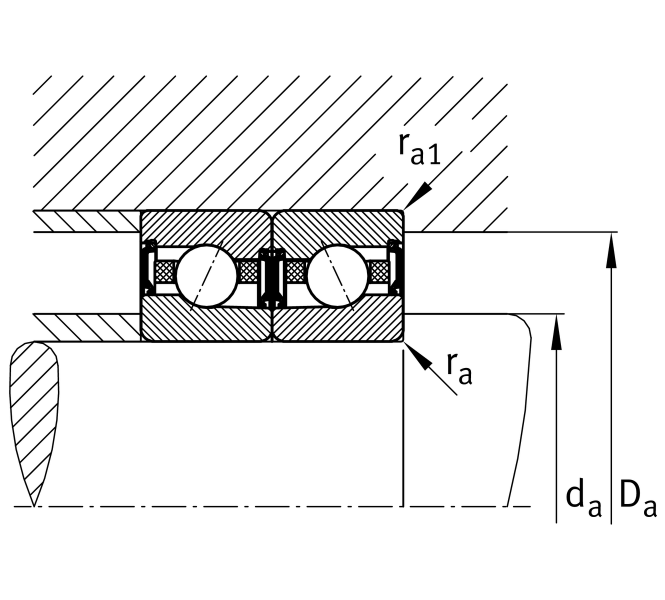

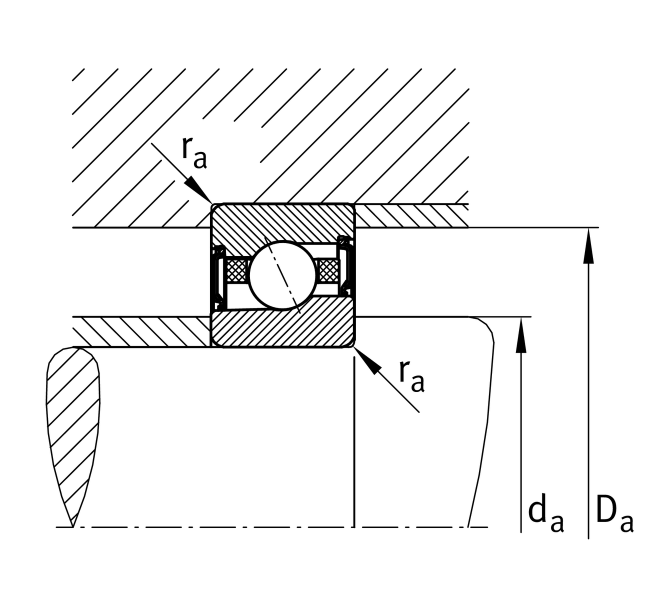

Mounting dimensions
da
110 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
141 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1.5 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
31.1 mm
Distance between the apexes of the pressure cones
