FAG WS22207-E1-XL-2RSR-C3
Sealed spherical roller bearings WS222..-E1, lip seals on both sides, for continuous casting machines
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

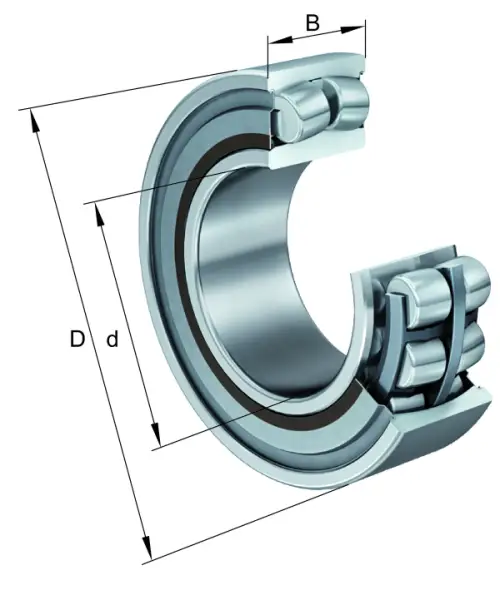

Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
72 mm
Outside diameter
B
28 mm
Width
Cr
89,000 N
Basic dynamic load rating, radial
C0r
81,000 N
Basic static load rating, radial
Cur
9,700 N
Fatigue load limit, radial
CG
2,700 1/min
Limiting speed
≈m
0.496 kg
Weight

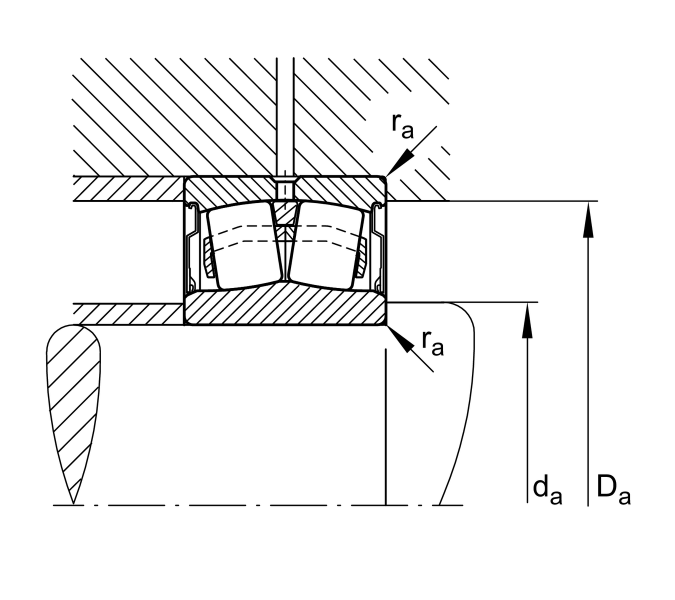

Mounting dimensions
da min
40.1 mm
Minimum diameter shaft shoulder
Da max
65 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
