FAG WS22208-E1-XL-2RSR
Sealed spherical roller bearings WS222..-E1, lip seals on both sides, for continuous casting machines
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

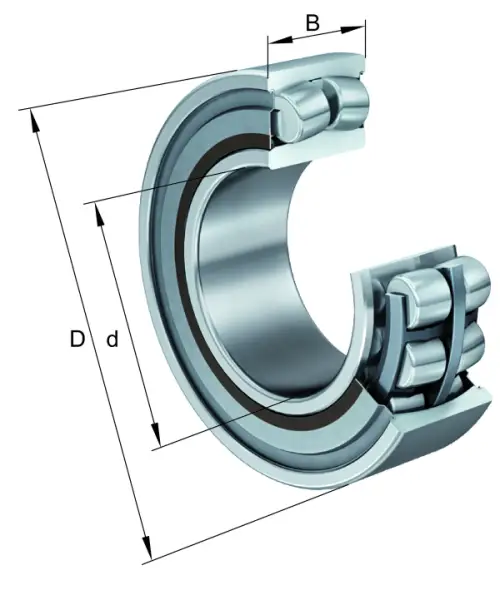

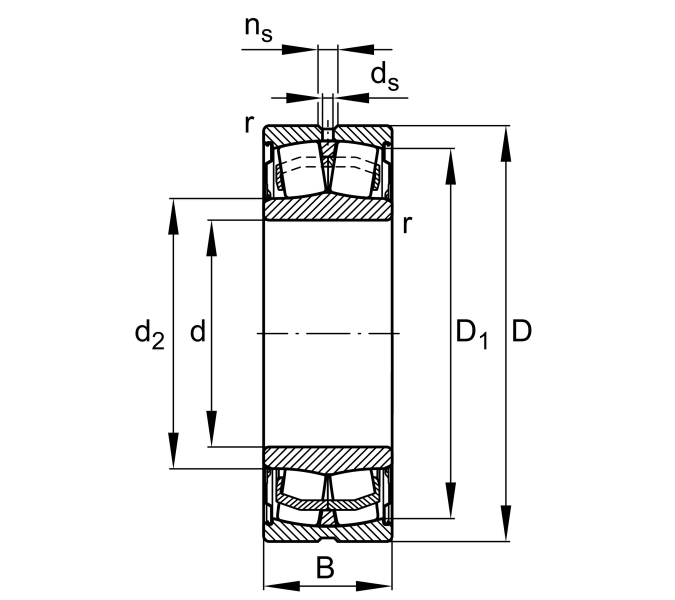

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
28 mm
Width
Cr
101,000 N
Basic dynamic load rating, radial
C0r
91,000 N
Basic static load rating, radial
Cur
12,100 N
Fatigue load limit, radial
CG
2,600 1/min
Limiting speed
≈m
0.602 kg
Weight

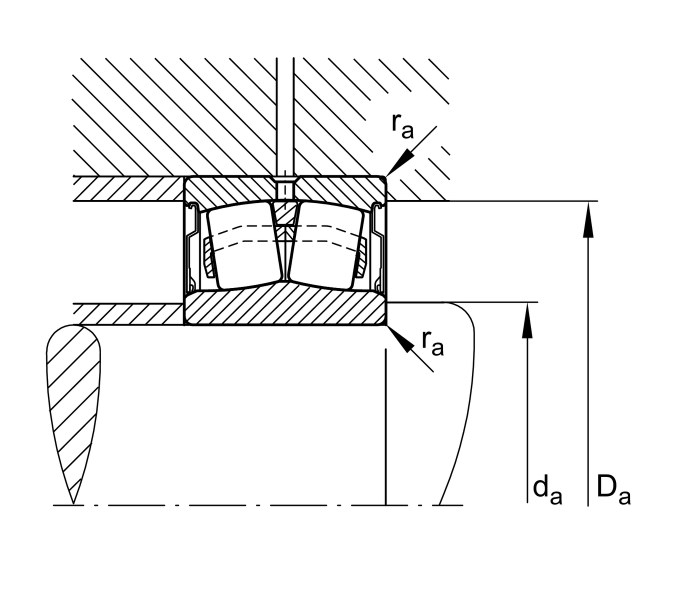

Mounting dimensions
da min
45.9 mm
Minimum diameter shaft shoulder
Da max
73 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
