FAG WS22208-E1-XL-K-2RSR

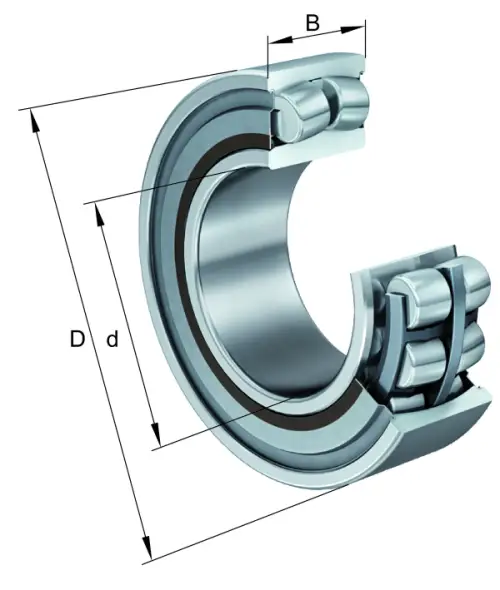

Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

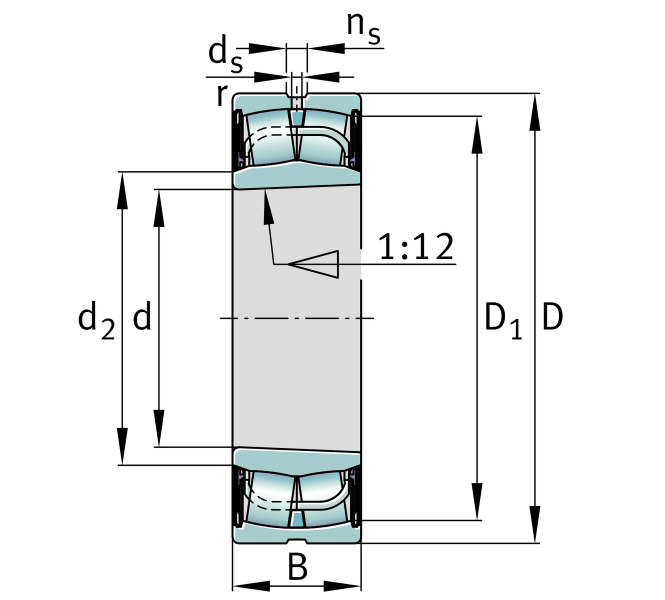

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
28 mm
Width
Cr
101,000 N
Basic dynamic load rating, radial
C0r
91,000 N
Basic static load rating, radial
Cur
12,100 N
Fatigue load limit, radial
CG
2,600 1/min
Limiting speed
≈m
0.56 kg
Weight

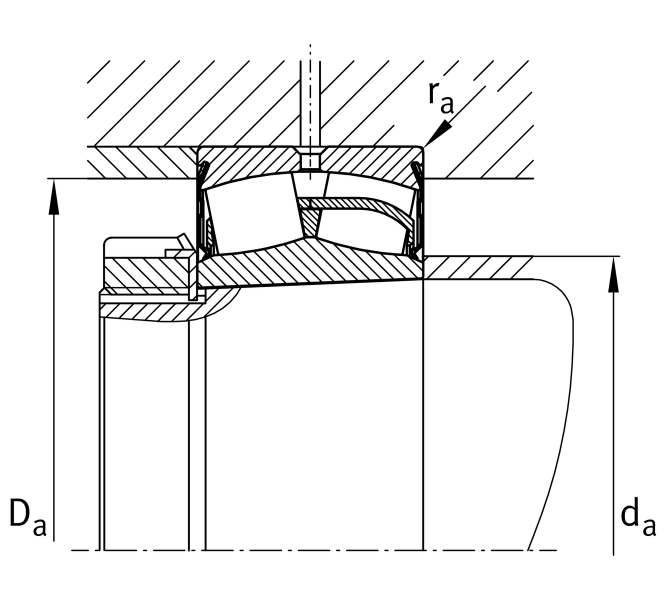

Mounting dimensions
da min
45.9 mm
Minimum diameter shaft shoulder
da max
45.9 mm
Maximum diameter of shaft shoulder
Da max
73 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
db min
44 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
