FAG WS22209-E1-XL-2RSR

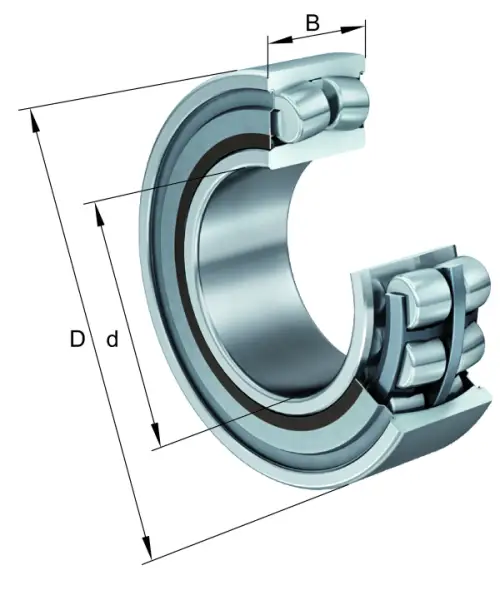

Sealed spherical roller bearings WS222..-E1, lip seals on both sides, for continuous casting machines
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

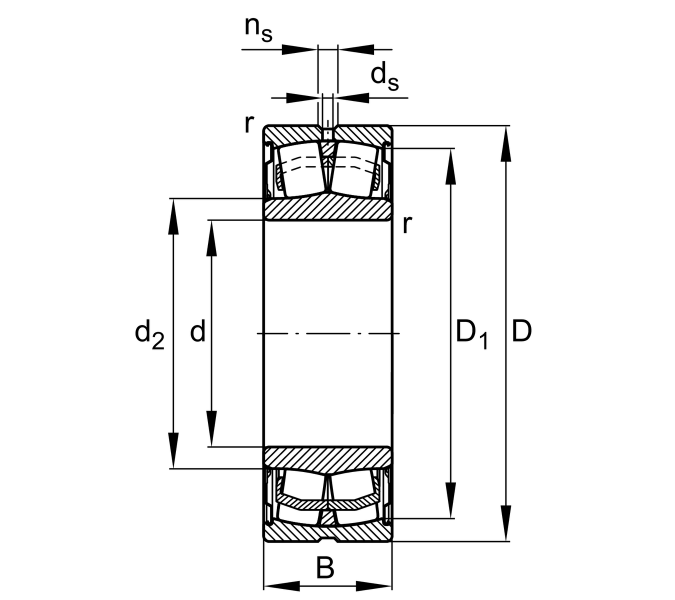

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
28 mm
Width
Cr
104,000 N
Basic dynamic load rating, radial
C0r
99,000 N
Basic static load rating, radial
Cur
13,000 N
Fatigue load limit, radial
CG
2,550 1/min
Limiting speed
≈m
0.645 kg
Weight

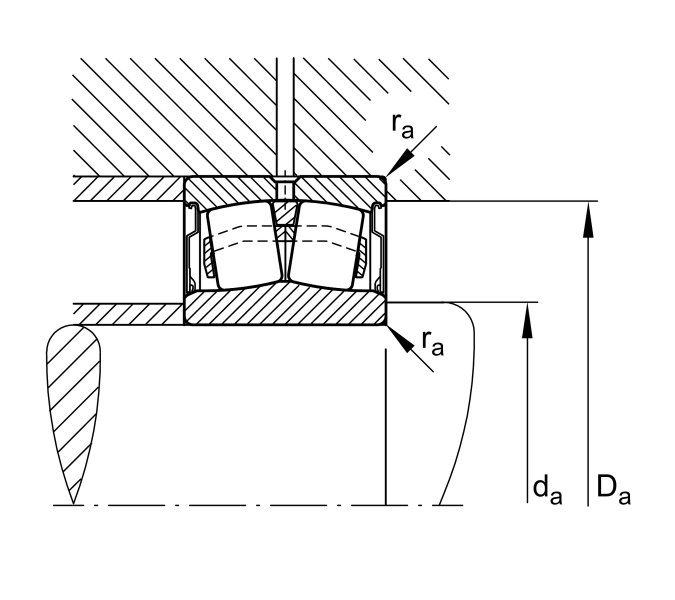

Mounting dimensions
da min
51.4 mm
Minimum diameter shaft shoulder
Da max
78 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
