FAG WS22211-E1-XL-2VSR-H40-C3

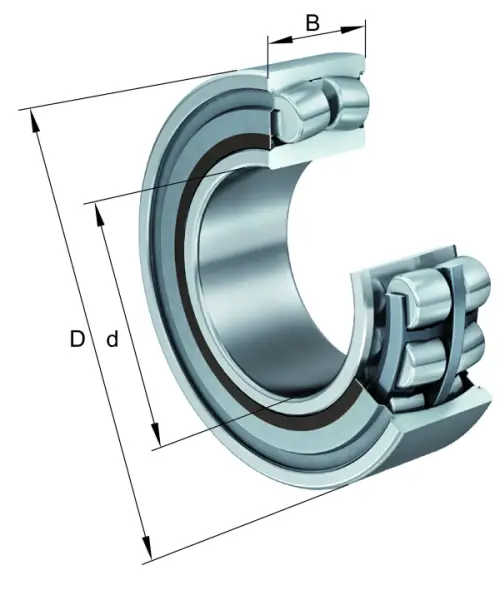

Spherical roller bearing WS222..-E1-XL-2VSR-H40, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

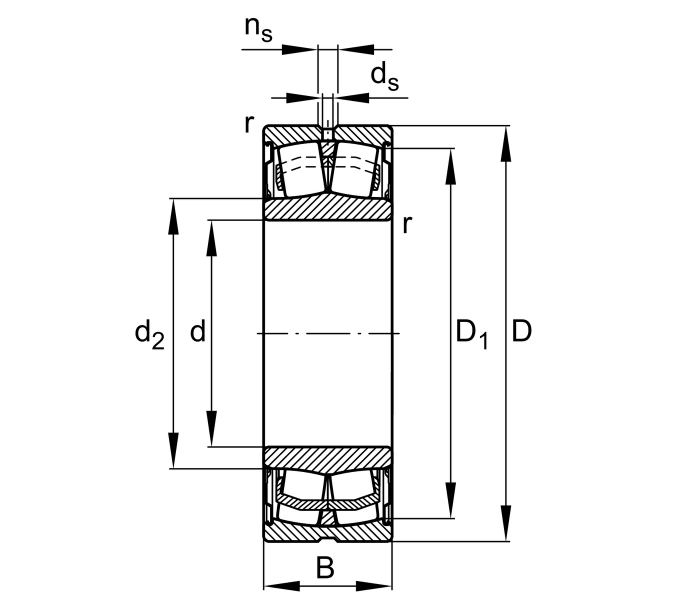

Main Dimensions & Performance Data
d
55 mm
Bore diameter
D
100 mm
Outside diameter
B
31 mm
Width
Cr
129,000 N
Basic dynamic load rating, radial
C0r
130,000 N
Basic static load rating, radial
Cur
17,700 N
Fatigue load limit, radial
CG
2,250 1/min
Limiting speed
≈m
0.997 kg
Weight

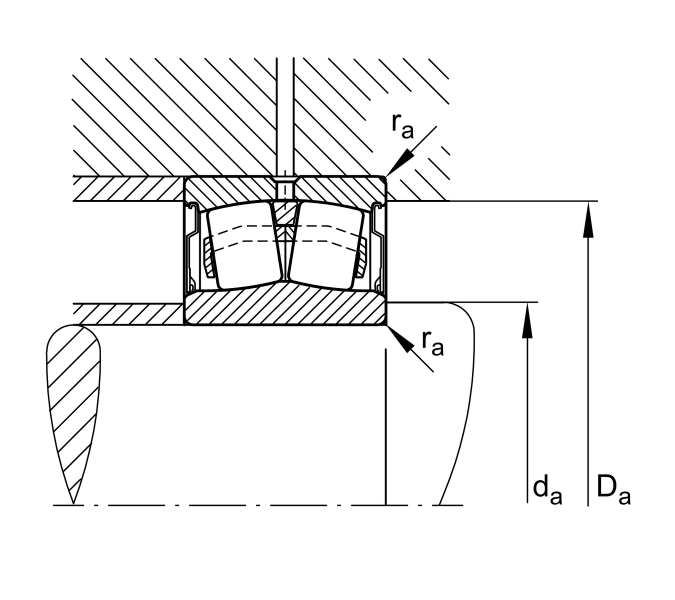

Mounting dimensions
da min
63.5 mm
Minimum diameter shaft shoulder
Da max
91.9 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
