FAG WS22212-E1-XL-2RSR-C3

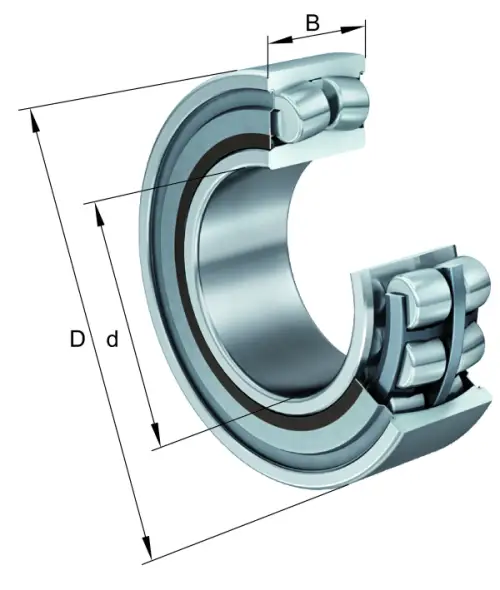

Sealed spherical roller bearings WS222..-E1, lip seals on both sides, for continuous casting machines
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

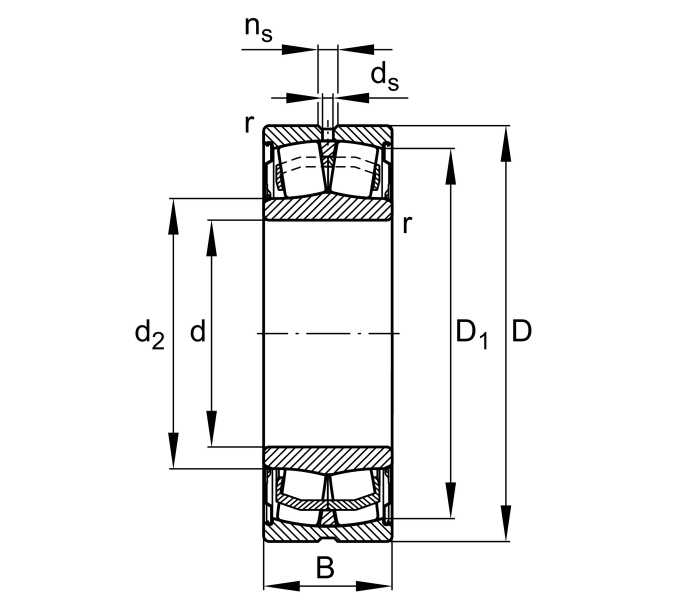

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
34 mm
Width
Cr
160,000 N
Basic dynamic load rating, radial
C0r
155,000 N
Basic static load rating, radial
Cur
20,700 N
Fatigue load limit, radial
CG
2,030 1/min
Limiting speed
≈m
1.27 kg
Weight

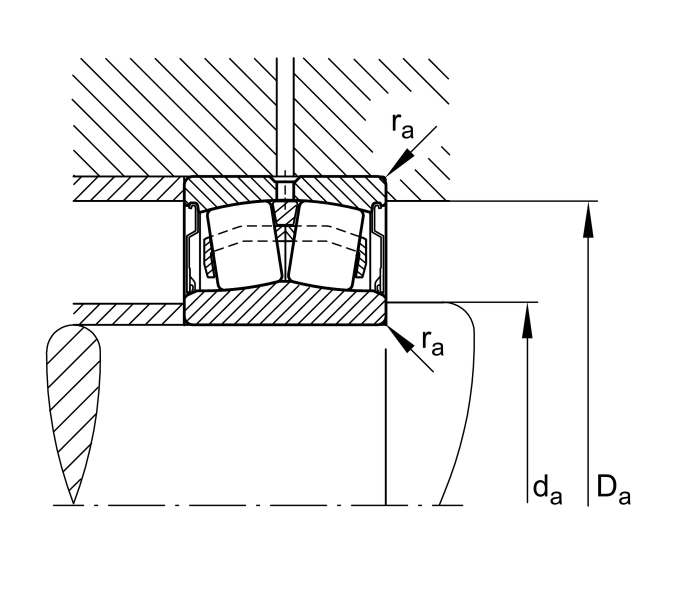

Mounting dimensions
da min
67.6 mm
Minimum diameter shaft shoulder
Da max
101 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
