FAG WS22213-E1-XL-2VSR-H40-C4
Spherical roller bearing WS222..-E1-XL-2VSR-H40, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

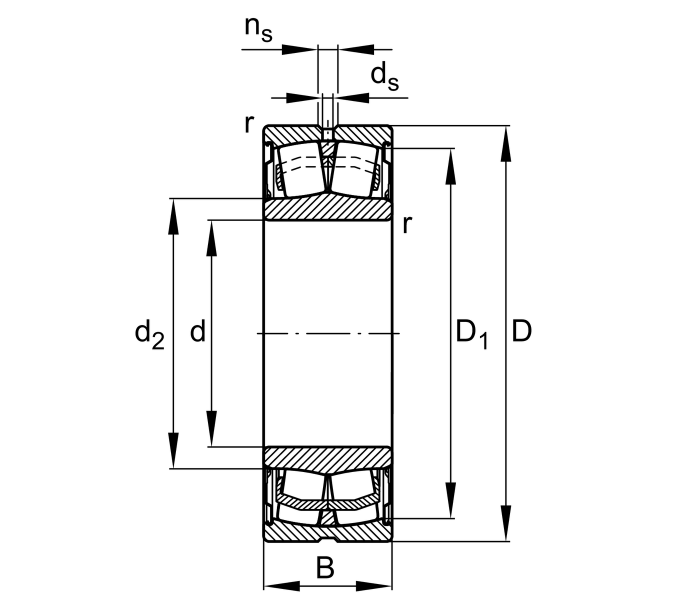

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
120 mm
Outside diameter
B
38 mm
Width
Cr
202,000 N
Basic dynamic load rating, radial
C0r
210,000 N
Basic static load rating, radial
Cur
26,500 N
Fatigue load limit, radial
CG
1,740 1/min
Limiting speed
≈m
1.77 kg
Weight

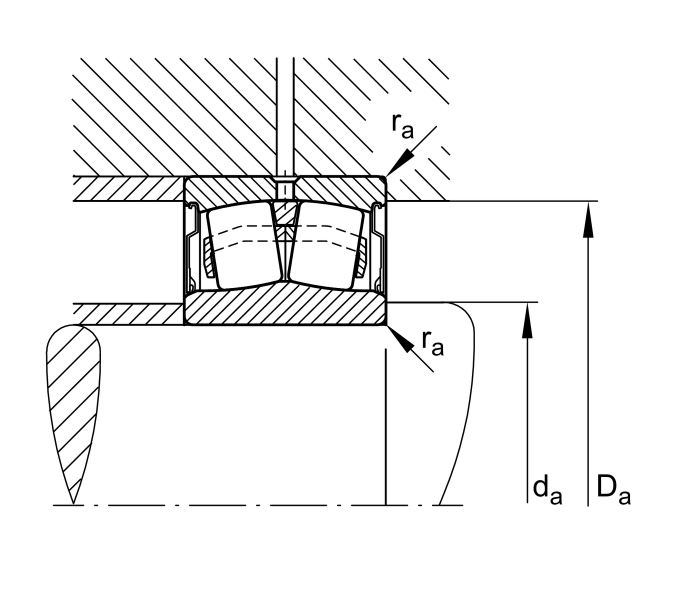

Mounting dimensions
da min
76.2 mm
Minimum diameter shaft shoulder
Da max
111 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
