FAG WS22213-E1-XL-K-2RSR

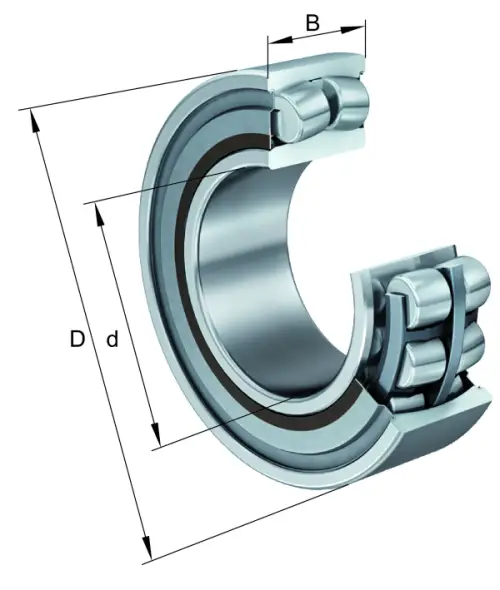

Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

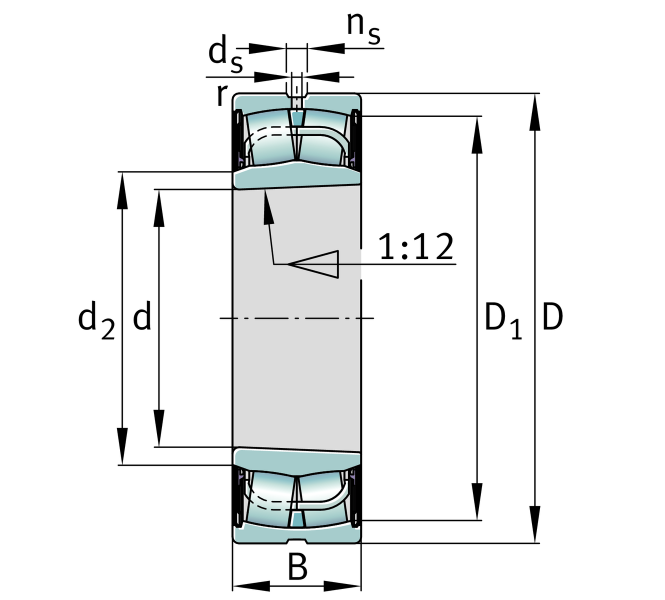

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
120 mm
Outside diameter
B
38 mm
Width
Cr
202,000 N
Basic dynamic load rating, radial
C0r
210,000 N
Basic static load rating, radial
Cur
26,500 N
Fatigue load limit, radial
CG
1,740 1/min
Limiting speed
≈m
1.687 kg
Weight

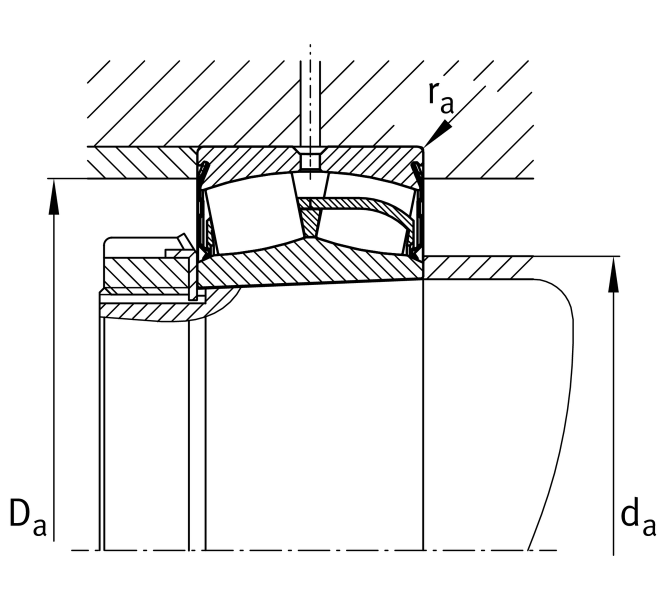

Mounting dimensions
da min
76.2 mm
Minimum diameter shaft shoulder
da max
76.2 mm
Maximum diameter of shaft shoulder
Da max
111 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
db min
70 mm
Minimum cavity diameter of the sleeve
Ba min
8 mm
Minimum cavity width of the sleeve
