FAG WS22214-E1-XL-2RSR
Sealed spherical roller bearings WS222..-E1, lip seals on both sides, for continuous casting machines
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

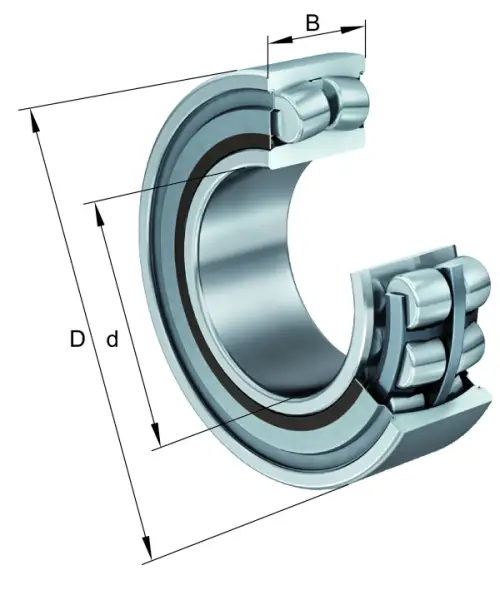

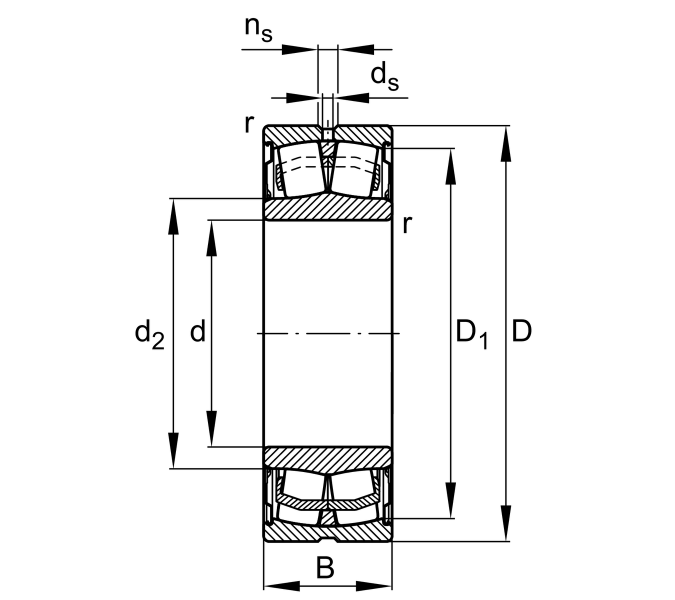

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
38 mm
Width
Cr
211,000 N
Basic dynamic load rating, radial
C0r
226,000 N
Basic static load rating, radial
Cur
28,500 N
Fatigue load limit, radial
CG
1,670 1/min
Limiting speed
≈m
1.897 kg
Weight

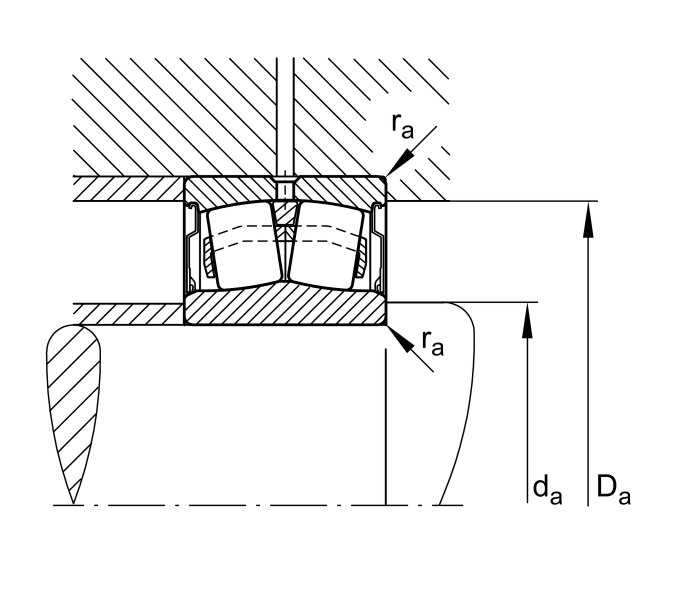

Mounting dimensions
da min
82.5 mm
Minimum diameter shaft shoulder
Da max
116 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
