FAG WS22214-E1-XL-K-2RSR

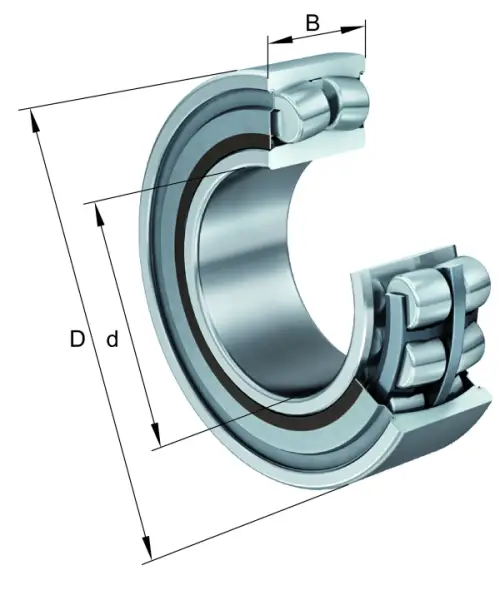

Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

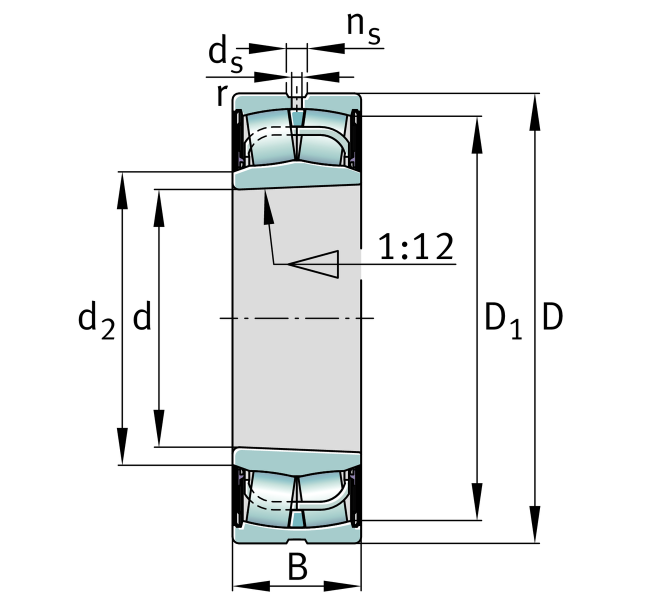

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
38 mm
Width
Cr
211,000 N
Basic dynamic load rating, radial
C0r
226,000 N
Basic static load rating, radial
Cur
28,500 N
Fatigue load limit, radial
CG
1,670 1/min
Limiting speed
≈m
1.83 kg
Weight

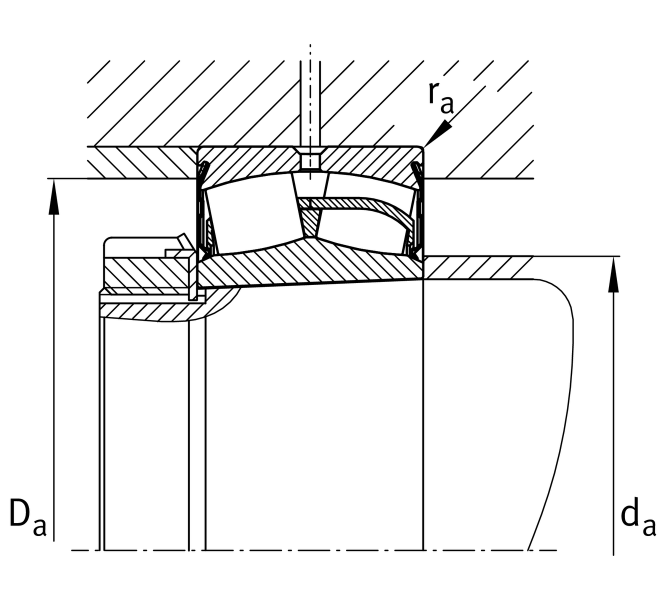

Mounting dimensions
da min
82.5 mm
Minimum diameter shaft shoulder
da max
82.5 mm
Maximum diameter of shaft shoulder
Da max
116 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
db min
75 mm
Minimum cavity diameter of the sleeve
Ba min
11 mm
Minimum cavity width of the sleeve
