FAG WS22215-E1-XL-K-2RSR
Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

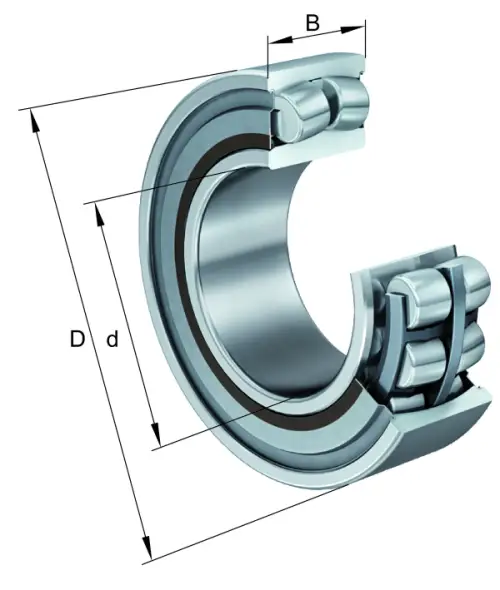

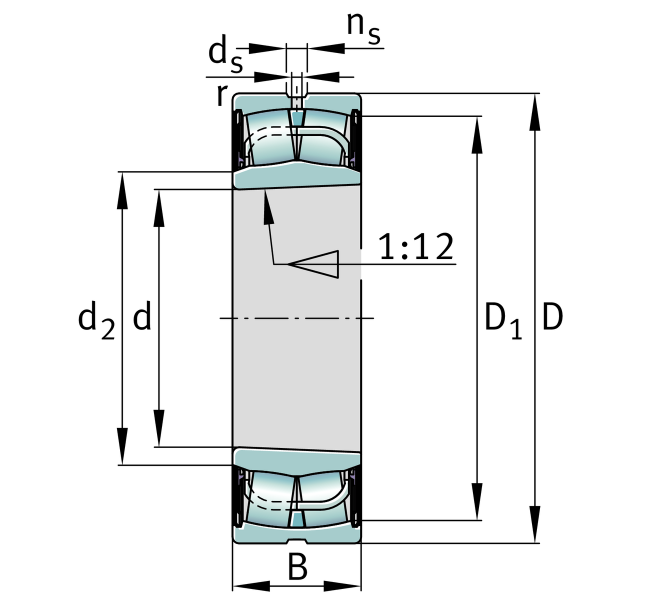

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
130 mm
Outside diameter
B
38 mm
Width
Cr
216,000 N
Basic dynamic load rating, radial
C0r
237,000 N
Basic static load rating, radial
Cur
30,500 N
Fatigue load limit, radial
CG
1,630 1/min
Limiting speed
≈m
1.93 kg
Weight

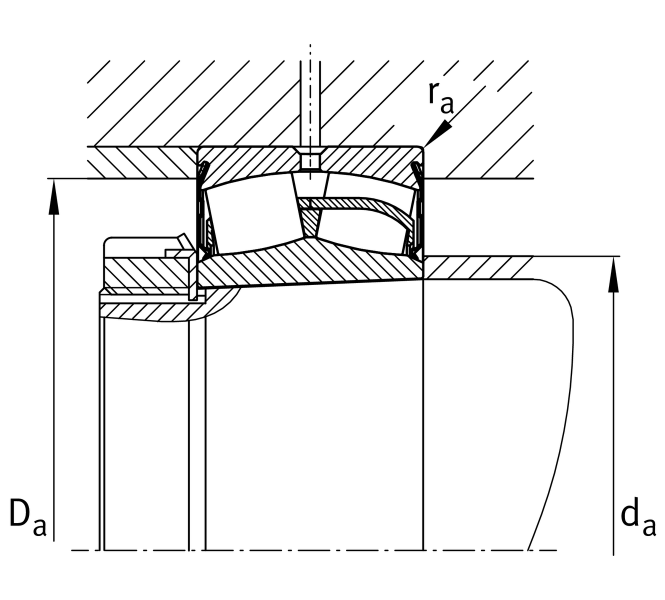

Mounting dimensions
da min
84 mm
Minimum diameter shaft shoulder
da max
85.6 mm
Maximum diameter of shaft shoulder
Da max
121 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
db min
80 mm
Minimum cavity diameter of the sleeve
Ba min
12 mm
Minimum cavity width of the sleeve
