FAG WS22216-E1-XL-2VSR-C4
Spherical roller bearing WS222..-E1-XL-2VSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

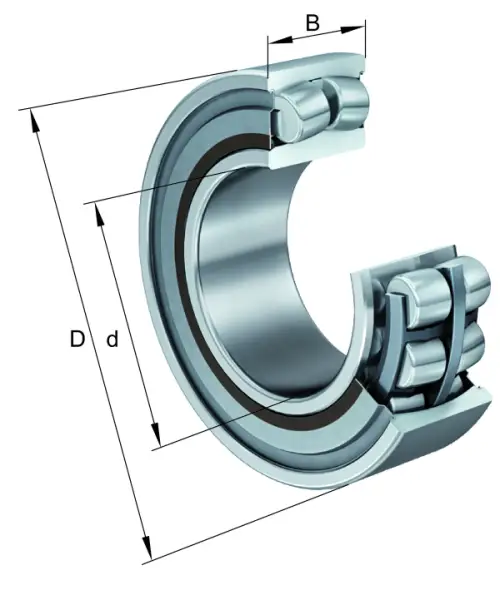

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
40 mm
Width
Cr
250,000 N
Basic dynamic load rating, radial
C0r
270,000 N
Basic static load rating, radial
Cur
34,500 N
Fatigue load limit, radial
CG
1,540 1/min
Limiting speed
≈m
2.37 kg
Weight

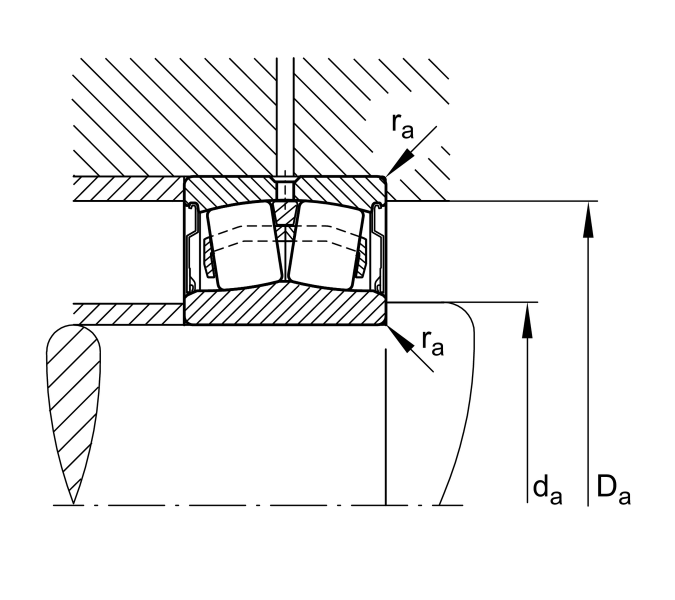

Mounting dimensions
da min
91 mm
Minimum diameter shaft shoulder
Da max
129 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
