FAG WS22216-E1-XL-K-2RSR

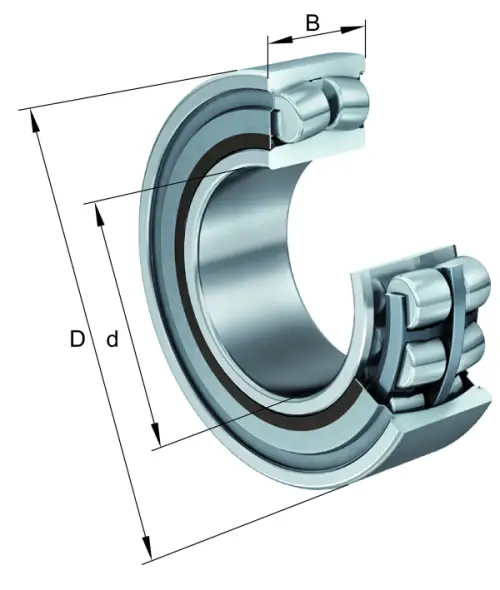

Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

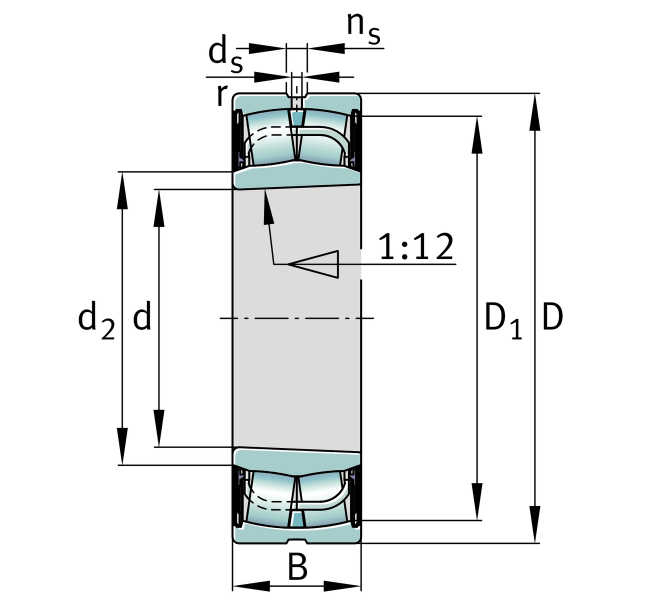

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
40 mm
Width
Cr
250,000 N
Basic dynamic load rating, radial
C0r
270,000 N
Basic static load rating, radial
Cur
34,500 N
Fatigue load limit, radial
CG
1,540 1/min
Limiting speed
≈m
2.323 kg
Weight

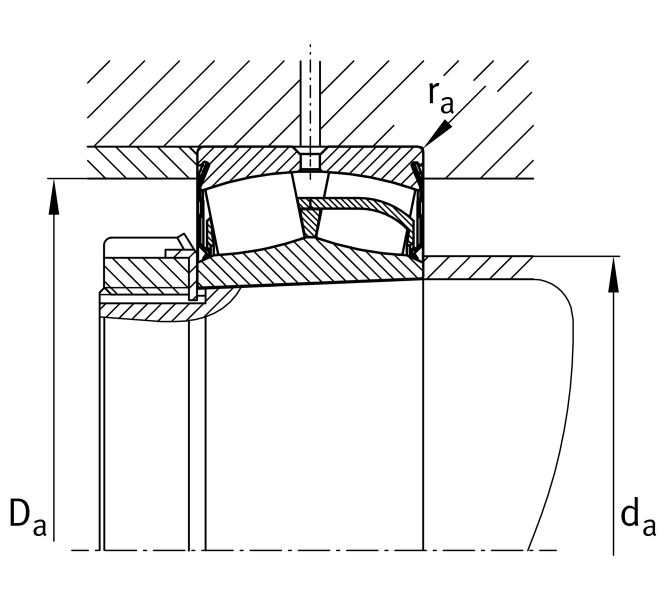

Mounting dimensions
da min
91 mm
Minimum diameter shaft shoulder
da max
91.3 mm
Maximum diameter of shaft shoulder
Da max
129 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
db min
85 mm
Minimum cavity diameter of the sleeve
Ba min
12 mm
Minimum cavity width of the sleeve
