FAG WS22218-E1-XL-2VSR-H40-C4
Spherical roller bearing WS222..-E1-XL-2VSR-H40, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

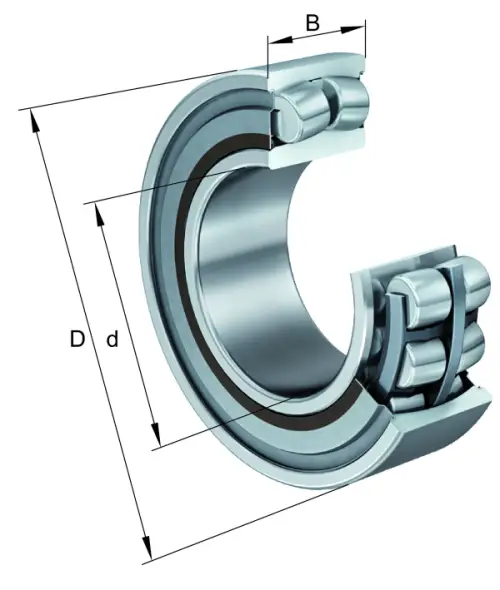

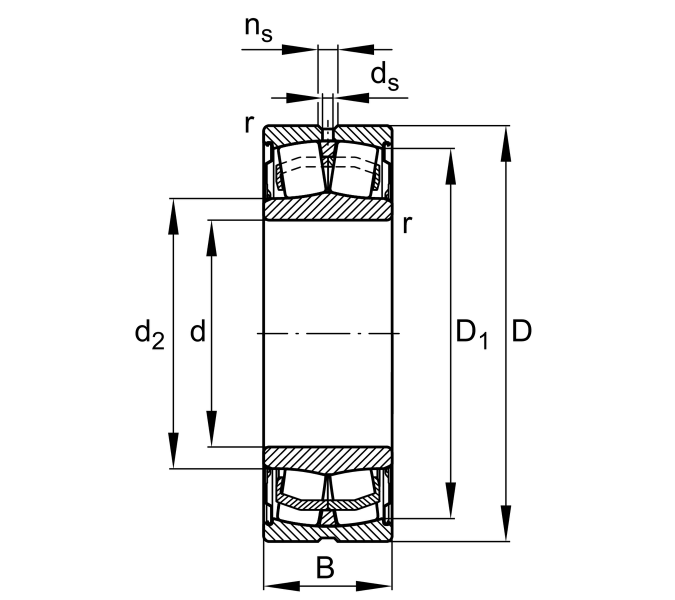

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
48 mm
Width
Cr
345,000 N
Basic dynamic load rating, radial
C0r
375,000 N
Basic static load rating, radial
Cur
43,500 N
Fatigue load limit, radial
CG
1,300 1/min
Limiting speed
≈m
3.844 kg
Weight

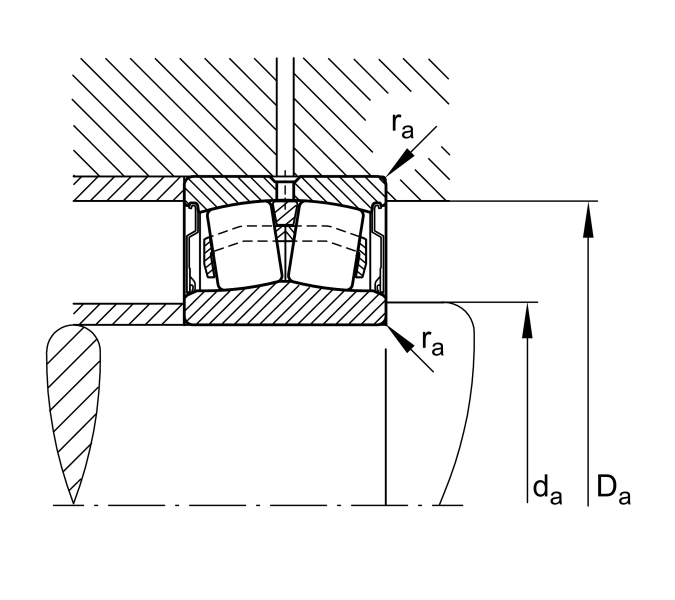

Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
Da max
149 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
