FAG WS22218-E1-XL-K-2RSR

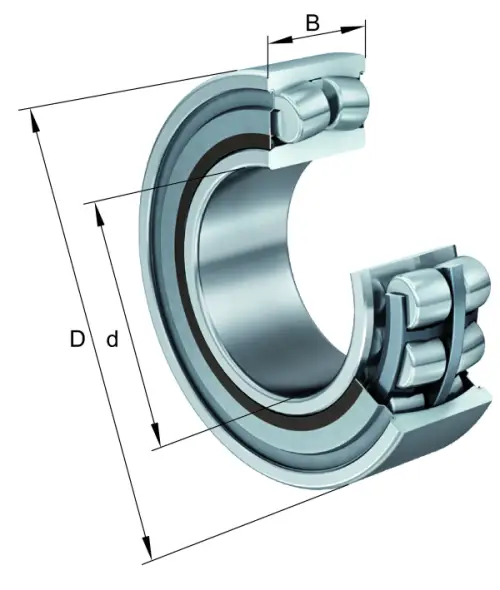

Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

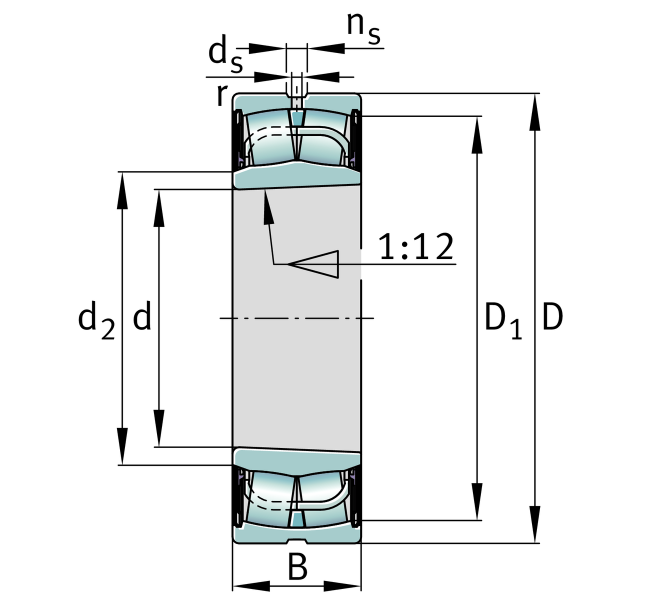

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
48 mm
Width
Cr
345,000 N
Basic dynamic load rating, radial
C0r
375,000 N
Basic static load rating, radial
Cur
43,500 N
Fatigue load limit, radial
CG
1,300 1/min
Limiting speed
≈m
3.683 kg
Weight

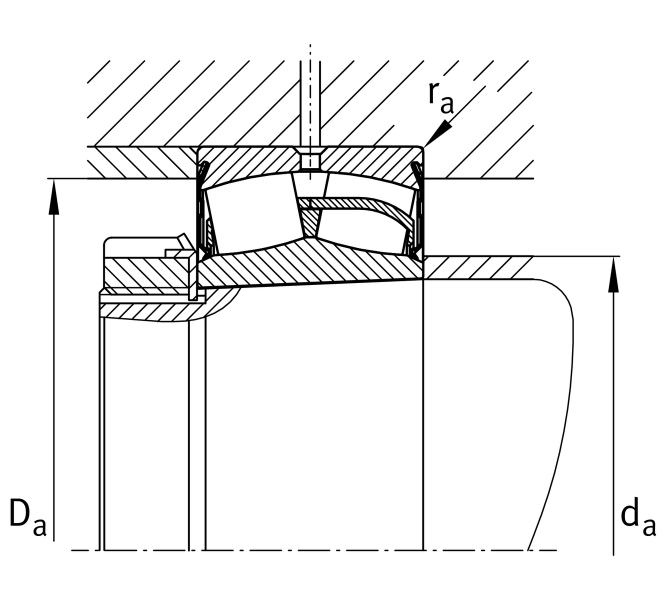

Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
da max
101.4 mm
Maximum diameter of shaft shoulder
Da max
149 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
db min
96 mm
Minimum cavity diameter of the sleeve
Ba min
10 mm
Minimum cavity width of the sleeve
