FAG WS22311-E1-XL-2RSR
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

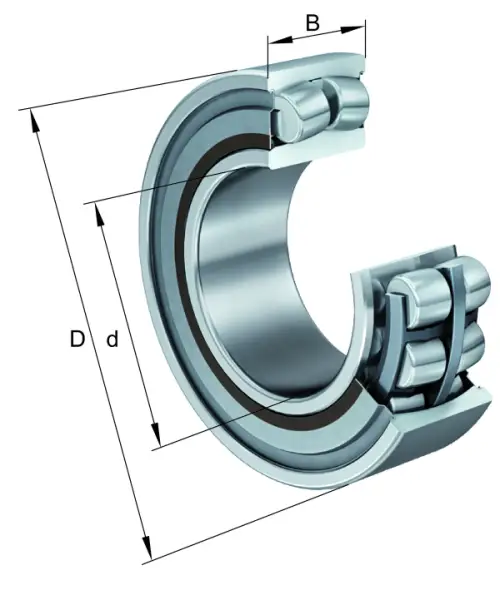

Main Dimensions & Performance Data
d
55 mm
Bore diameter
D
120 mm
Outside diameter
B
49 mm
Width
Cr
265,000 N
Basic dynamic load rating, radial
C0r
260,000 N
Basic static load rating, radial
Cur
24,600 N
Fatigue load limit, radial
CG
1,460 1/min
Limiting speed
≈m
2.6 kg
Weight

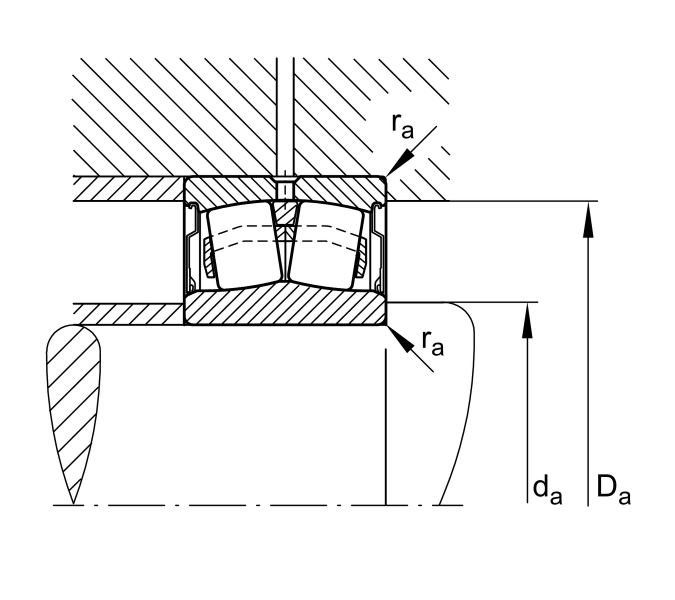

Mounting dimensions
da min
64.8 mm
Minimum diameter shaft shoulder
Da max
109 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
