FAG WS22312-E1-XL-2RSR
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

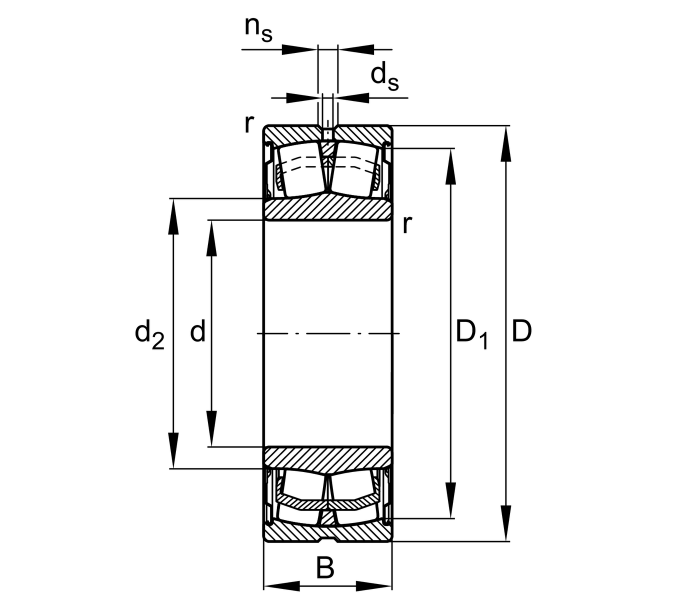

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
130 mm
Outside diameter
B
53 mm
Width
Cr
310,000 N
Basic dynamic load rating, radial
C0r
310,000 N
Basic static load rating, radial
Cur
29,000 N
Fatigue load limit, radial
CG
1,350 1/min
Limiting speed
≈m
3.327 kg
Weight

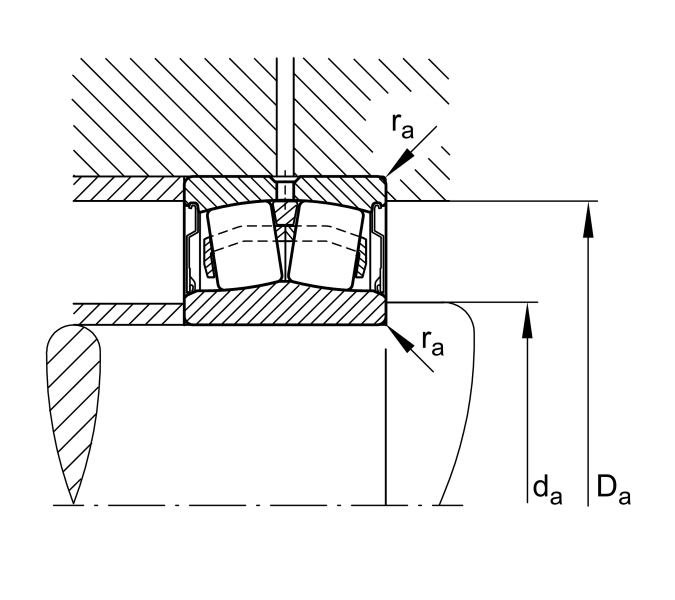

Mounting dimensions
da min
71.4 mm
Minimum diameter shaft shoulder
Da max
118 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
