FAG WS22314-E1-XL-2RSR
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

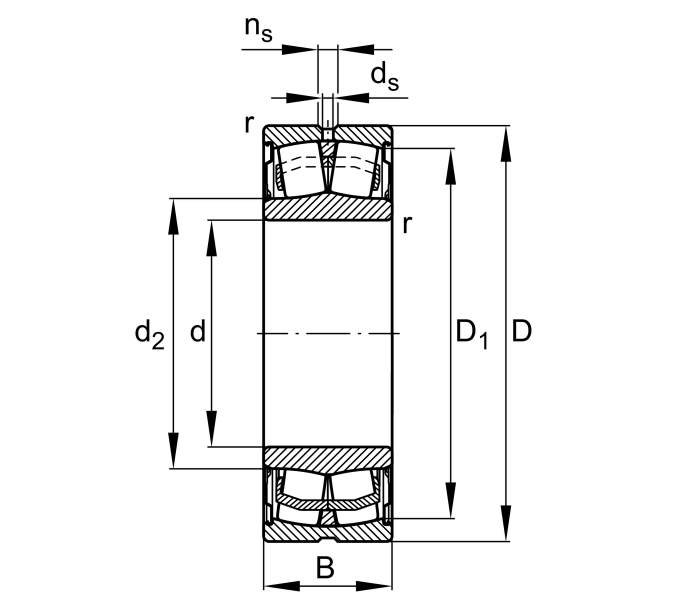

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
150 mm
Outside diameter
B
60 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
390,000 N
Basic static load rating, radial
Cur
37,500 N
Fatigue load limit, radial
CG
1,210 1/min
Limiting speed
≈m
4.848 kg
Weight

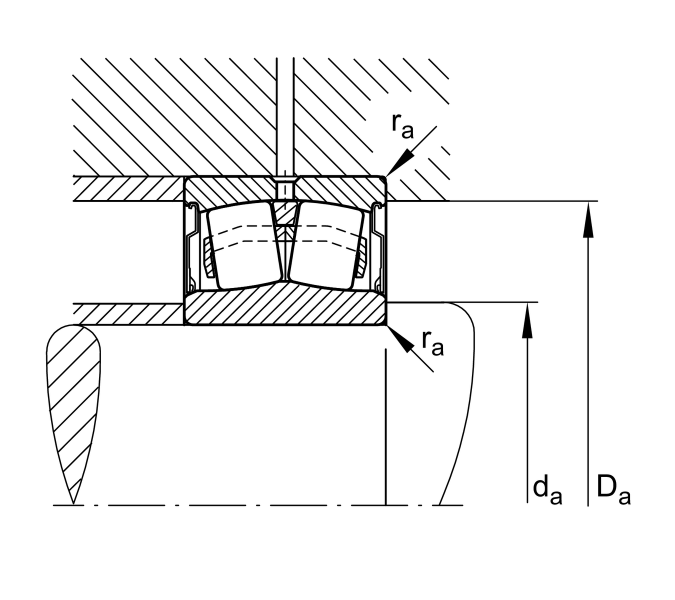

Mounting dimensions
da min
80.7 mm
Minimum diameter shaft shoulder
Da max
138 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
