FAG Z-507596.TR1
Tapered Roller Bearings
Tapered roller bearings, single row
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

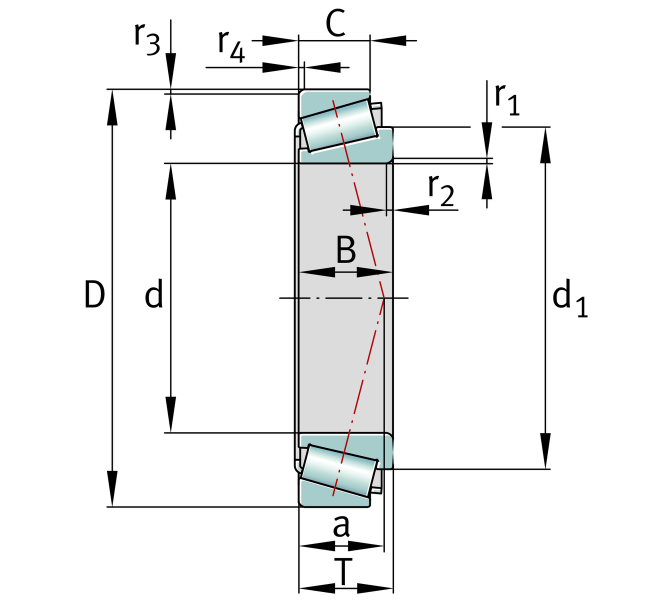

Main Dimensions & Performance Data
d
670 mm
Bore diameter
D
820 mm
Outside diameter
B
80 mm
Width, inner ring
C
68 mm
Width, outer ring
T
88 mm
Width, total
Cr
1,400,000 N
Basic dynamic load rating, radial
C0r
3,650,000 N
Basic static load rating, radial
Cur
305,000 N
Fatigue load limit, radial
CG
630 1/min
Limiting speed
≈m
89 kg
Weight
