FAG Z-543060.TR1
Tapered Roller Bearings

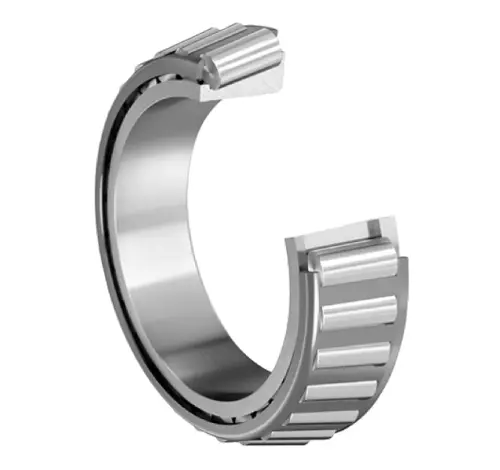

Tapered roller bearings, single row
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

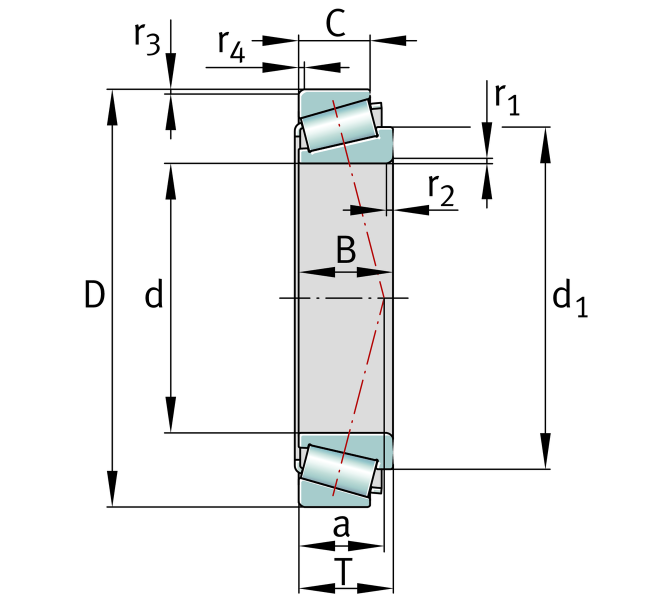

Main Dimensions & Performance Data
d
749.3 mm
Bore diameter
D
990.6 mm
Outside diameter
B
160.338 mm
Width, inner ring
C
123 mm
Width, outer ring
T
159.5 mm
Width, total
Cr
4,150,000 N
Basic dynamic load rating, radial
C0r
10,900,000 N
Basic static load rating, radial
Cur
880,000 N
Fatigue load limit, radial
CG
610 1/min
Limiting speed
≈m
315.9 kg
Weight
