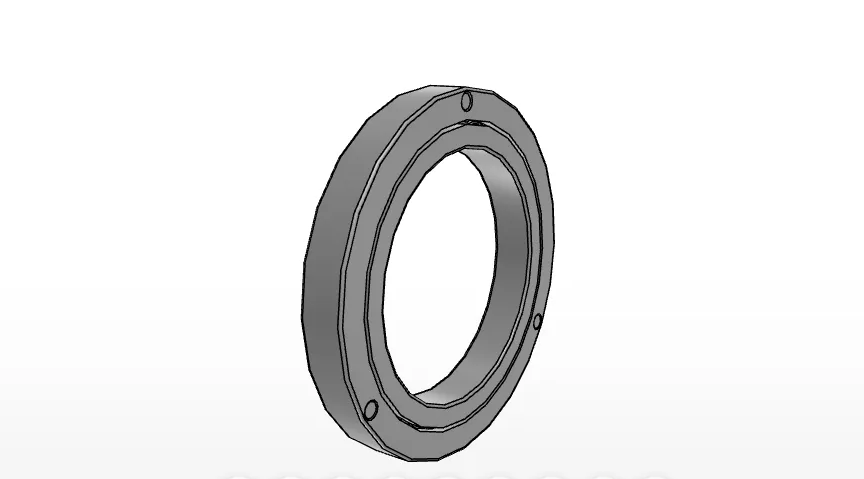

IKO CRB9016C1
Standard Type Crossed Roller Bearings, Full Complement, High Carbon Steel, Open, Small Clearance
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRB9016
Shaft Diameter
90
mm
Inside Diameter
90
mm
Outer Diameter
130
mm
Width
16
mm
Min.Chamfer
1.0
mm

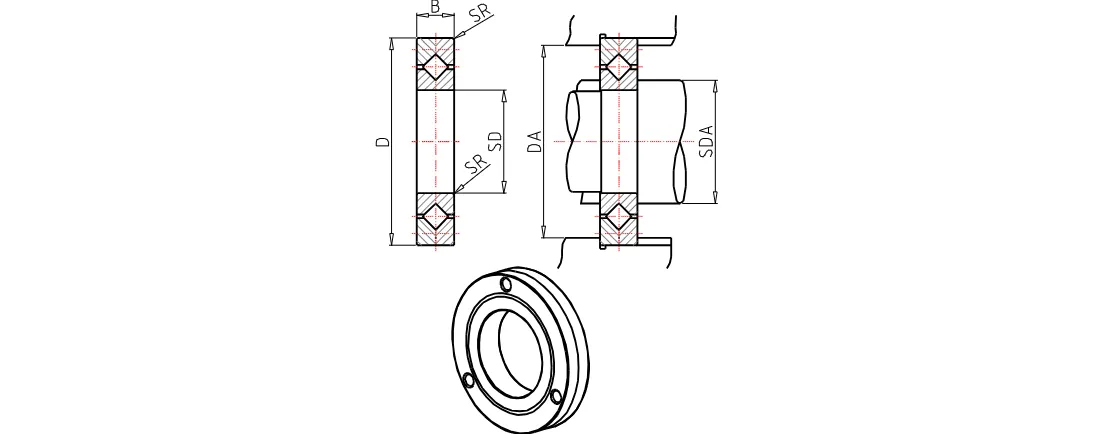

Dimension related to the installation
98
mm
Dimension related to the installation
118
mm
Basic dynamic load rating
25900
N
Basic static load rating
42100
N
Mass
0.81
kg
