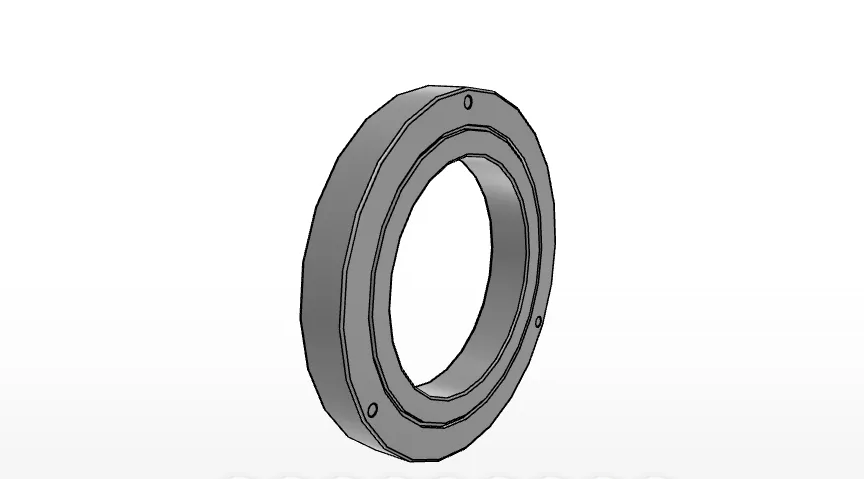

IKO CRBC15030T1
Standard Type Crossed Roller Bearings, Steel Cage, High Carbon Steel, Open, Pre Load
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBC15030
Shaft Diameter
150
mm
Inside Diameter
150
mm
Outer Diameter
230
mm
Width
30
mm
Min.Chamfer
1.5
mm

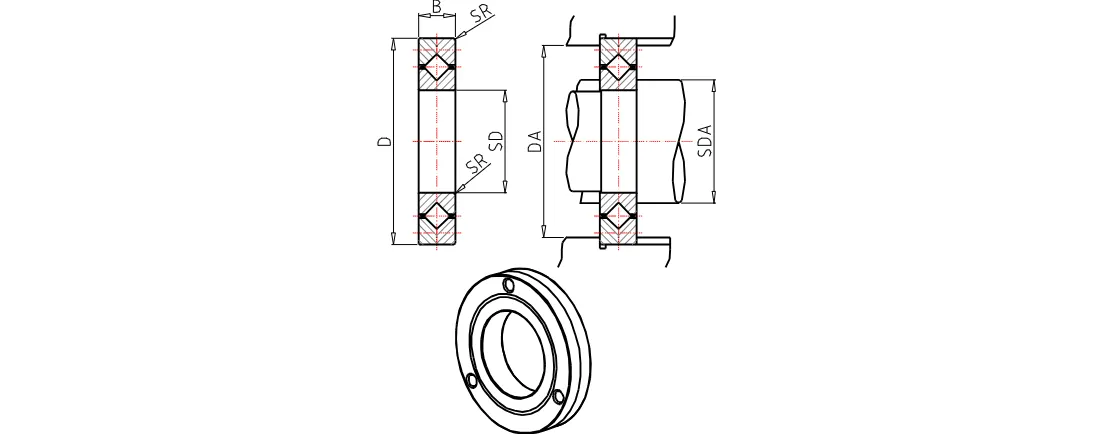

Dimension related to the installation
166
mm
Dimension related to the installation
202
mm
Basic dynamic load rating
69200
N
Basic static load rating
108000
N
Mass
5.30
kg
