IKO CRBC20030C1
Standard Type Crossed Roller Bearings, Steel Cage, High Carbon Steel, Open, Small Clearance
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBC20030
Shaft Diameter
200
mm
Inside Diameter
200
mm
Outer Diameter
280
mm
Width
30
mm
Min.Chamfer
2.0
mm

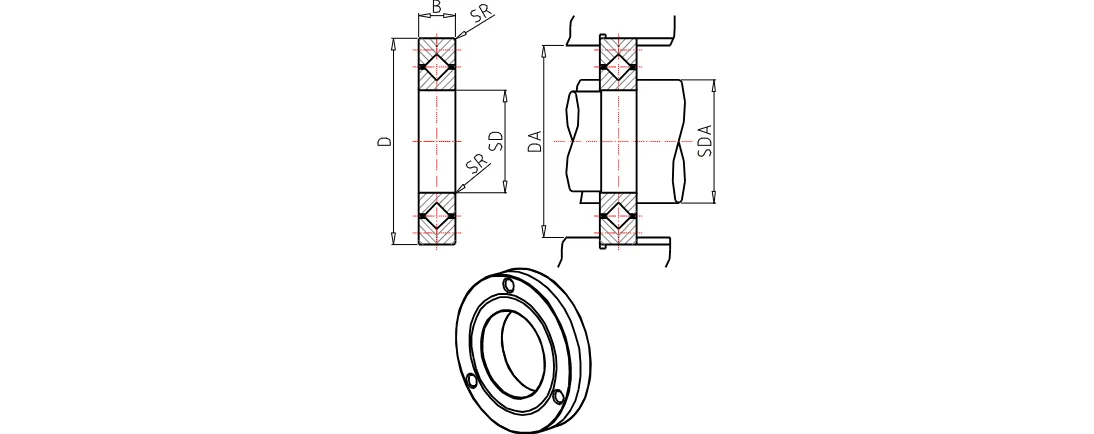

Dimension related to the installation
218
mm
Dimension related to the installation
262
mm
Basic dynamic load rating
108000
N
Basic static load rating
178000
N
Mass
6.70
kg
