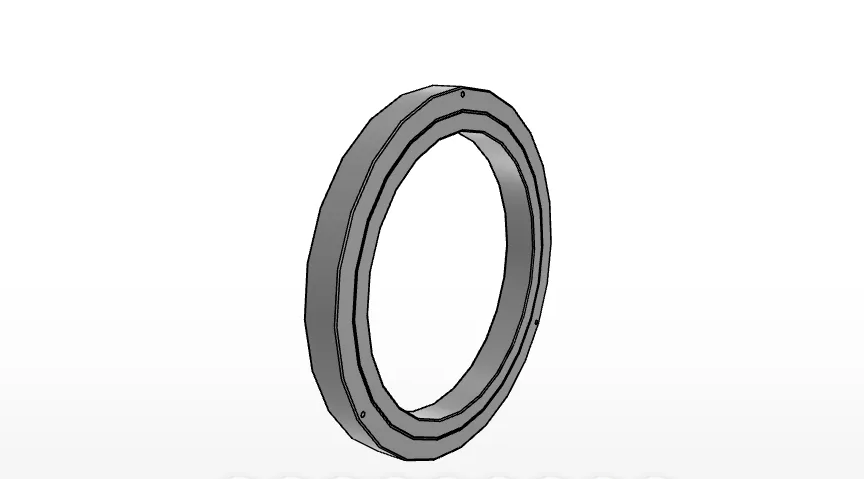

IKO CRBC800100T1

Crossed Roller Bearings

Standard Type Crossed Roller Bearings, Steel Cage, High Carbon Steel, Open, Pre Load

(BRAND)：IKO

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

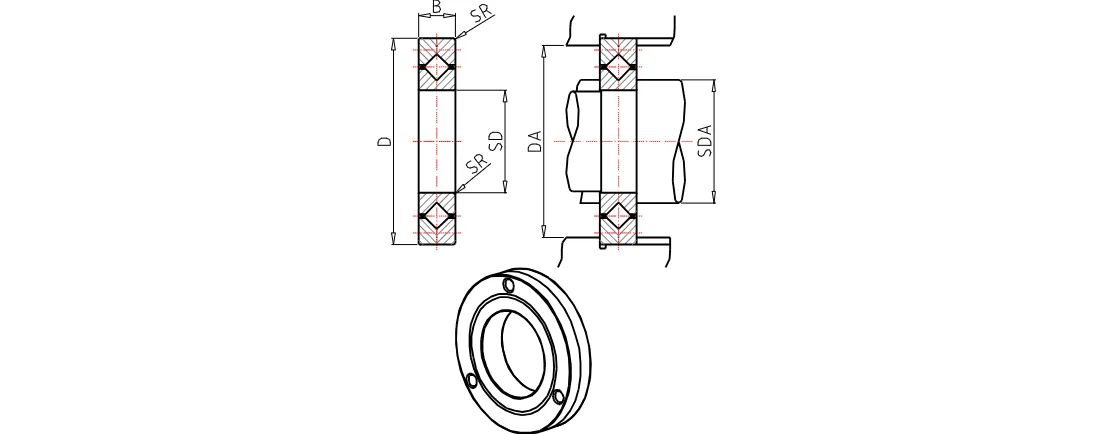

Detailed data of

CRBC800100T1

Crossed Roller Bearings

Order Number CRBC800100

Shaft Diameter 800 mm

Inside Diameter 800 mm

Outer Diameter 1030 mm

Width 100 mm

Min.Chamfer 4.0 mm

Dimension related to the installation 840 mm

Dimension related to the installation 972 mm

Basic dynamic load rating 936000 N

Basic static load rating 2040000 N

Mass 247.00 kg
