IKO CRBC9016C1
Standard Type Crossed Roller Bearings, Steel Cage, High Carbon Steel, Open, Small Clearance
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBC9016
Shaft Diameter
90
mm
Inside Diameter
90
mm
Outer Diameter
130
mm
Width
16
mm
Min.Chamfer
1.0
mm

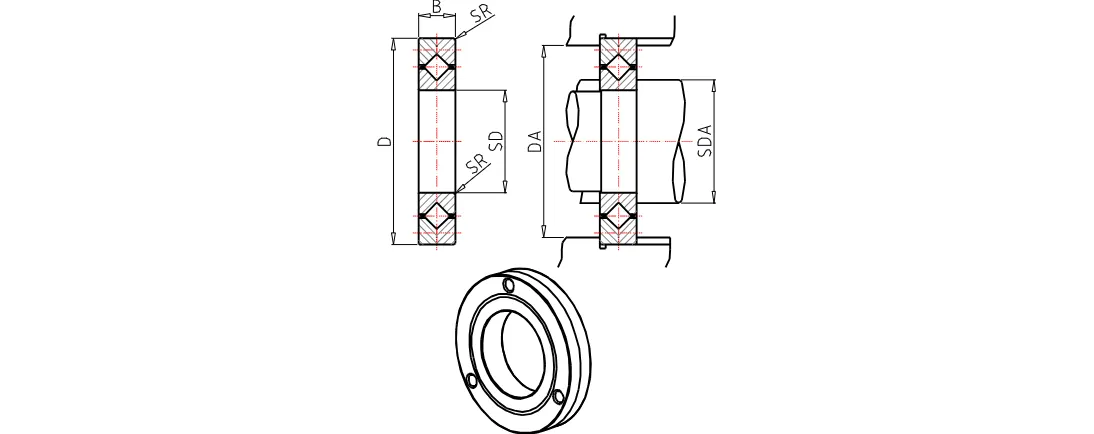

Dimension related to the installation
98
mm
Dimension related to the installation
118
mm
Basic dynamic load rating
19400
N
Basic static load rating
28600
N
Mass
0.81
kg
