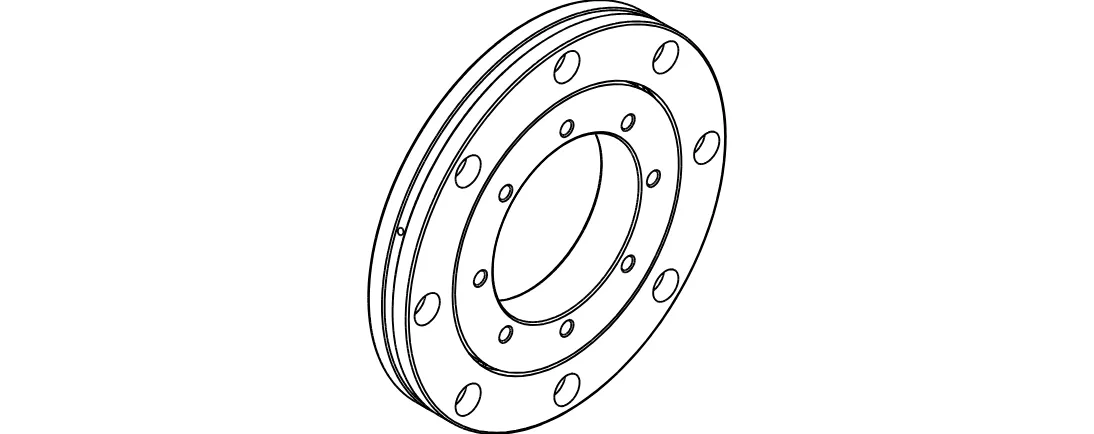

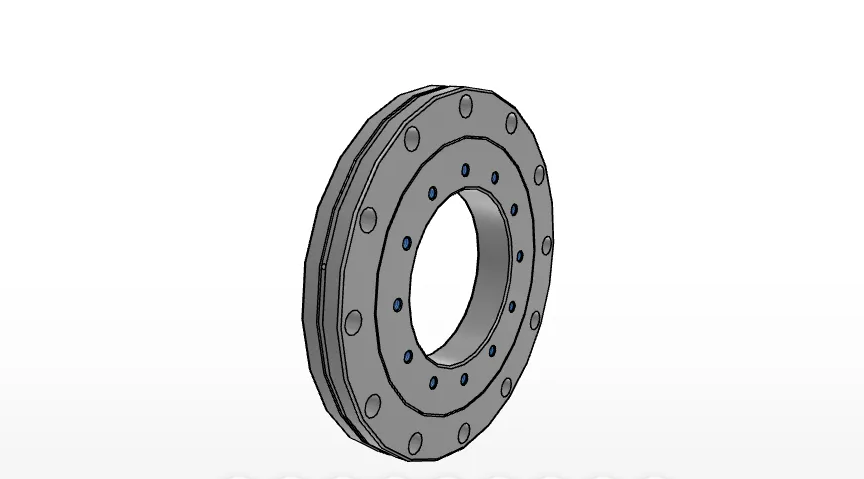

IKO CRBFV11528ATC1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Open, Small Clearance, Female Threaded Mounting Holes on Inner Ring
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBFV11528AT
Shaft Diameter
115
mm
Inside Diameter
115
mm
Outer Diameter
240
mm
Width
28
mm
Min.Chamfer
1.5
mm
Min.Chamfer
1.5
mm
Basic dynamic load rating
84300
N
Basic static load rating
138000
N
Diameter
139
mm
Diameter
217
mm
InnerRmounting
12-M8
mm
OuterRmounting
12-9, Counterbore 14 depth 13.5
mm
Mass
6.81
kg
