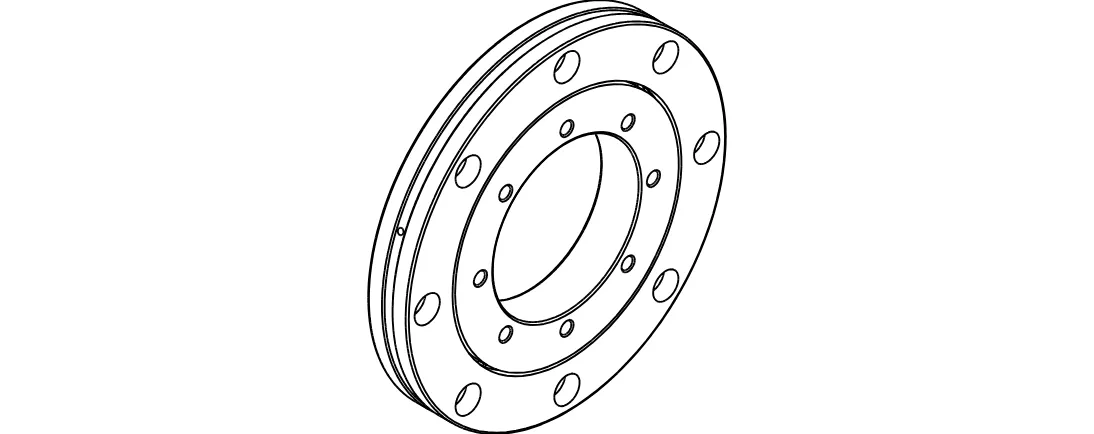

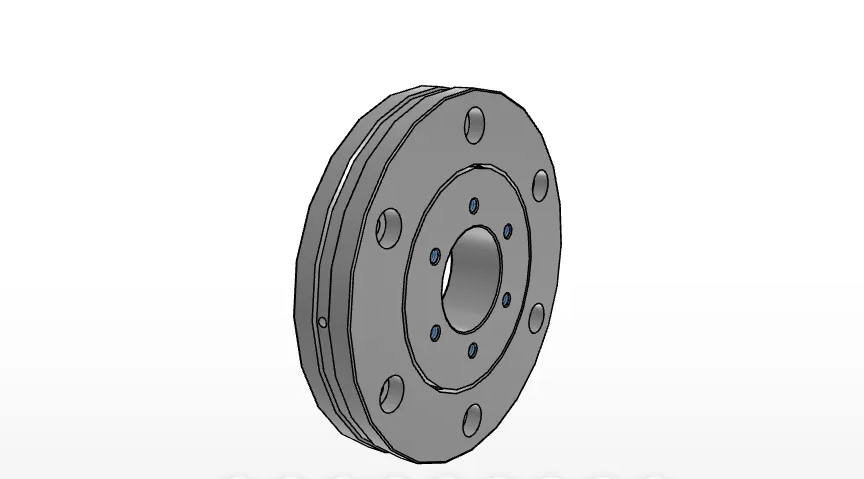

IKO CRBFV2012ATC1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Open, Small Clearance, Female Threaded Mounting Holes on Inner Ring
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBFV2012AT
Shaft Diameter
20
mm
Inside Diameter
20
mm
Outer Diameter
70
mm
Width
12
mm
Min.Chamfer
0.3
mm
Min.Chamfer
0.3
mm
Basic dynamic load rating
7600
N
Basic static load rating
8370
N
Diameter
28
mm
Diameter
57
mm
InnerRmounting
6-M3
mm
OuterRmounting
6-3.4, Counterbore6.5 depth3.3
mm
Mass
0.31
kg
