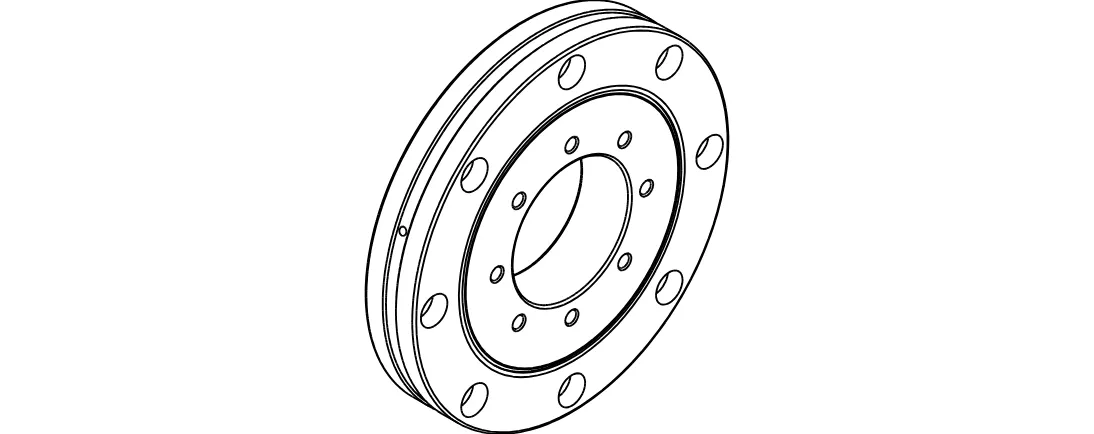

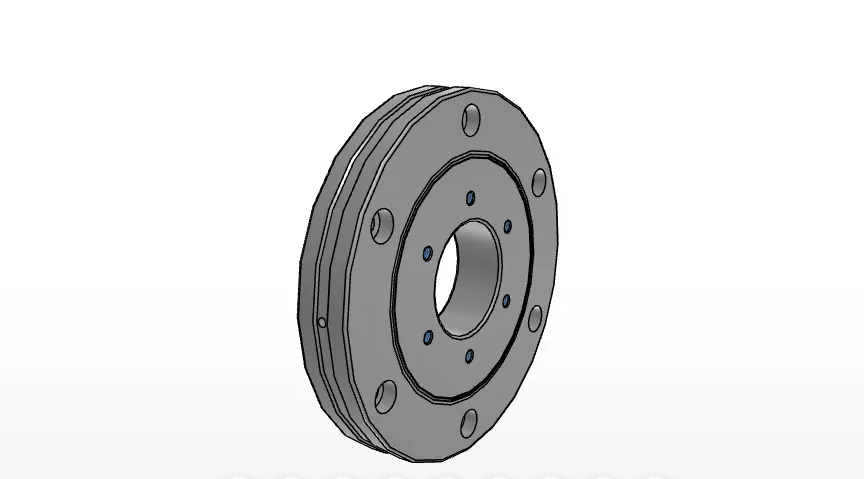

IKO CRBFV2512ATUUT1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Sealed, Pre Load, Female Threaded Mounting Holes on Inner Ring
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBFV2512ATUU
Shaft Diameter
25
mm
Inside Diameter
25
mm
Outer Diameter
80
mm
Width
12
mm
Min.Chamfer
0.6
mm
Min.Chamfer
0.6
mm
Basic dynamic load rating
8610
N
Basic static load rating
10600
N
Diameter
35
mm
Diameter
67
mm
InnerRmounting
6-M3
mm
OuterRmounting
6-3.4, Counterbore6.5 depth3.3
mm
Mass
0.40
kg
