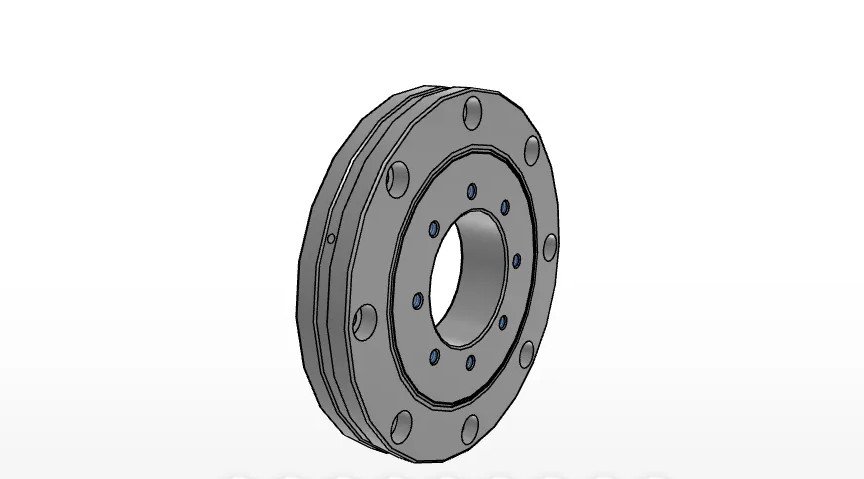

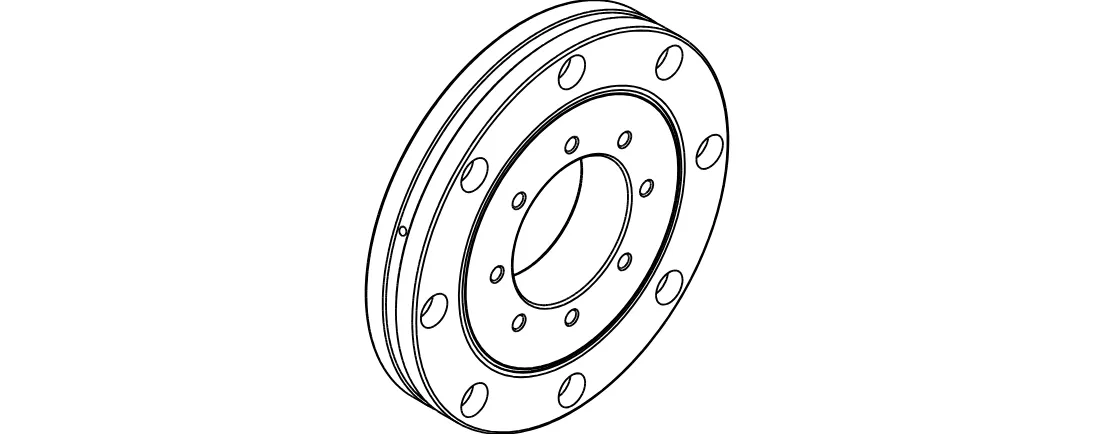

IKO CRBFV3515ATUUC1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Sealed, Small Clearance, Female Threaded Mounting Holes on Inner Ring
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBFV3515ATUU
Shaft Diameter
35
mm
Inside Diameter
35
mm
Outer Diameter
95
mm
Width
15
mm
Min.Chamfer
0.6
mm
Min.Chamfer
0.6
mm
Basic dynamic load rating
17300
N
Basic static load rating
20900
N
Diameter
45
mm
Diameter
83
mm
InnerRmounting
8-M4
mm
OuterRmounting
8- 4.5 hole, Counterbore 8 depth 4.4
mm
Mass
0.66
kg
