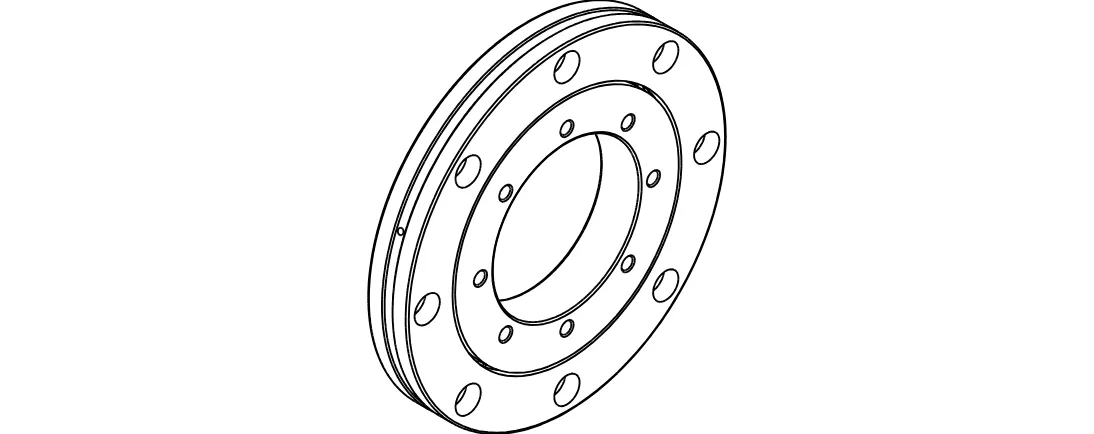

IKO CRBFV5515ATT1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Open, Pre Load, Female Threaded Mounting Holes on Inner Ring
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBFV5515AT
Shaft Diameter
55
mm
Inside Diameter
55
mm
Outer Diameter
120
mm
Width
15
mm
Min.Chamfer
0.6
mm
Min.Chamfer
0.6
mm
Basic dynamic load rating
20100
N
Basic static load rating
27700
N
Diameter
65
mm
Diameter
105
mm
InnerRmounting
8-M5
mm
OuterRmounting
8- 5.5 hole, Counterbore 9.5 depth 5.4
mm
Mass
0.96
kg
