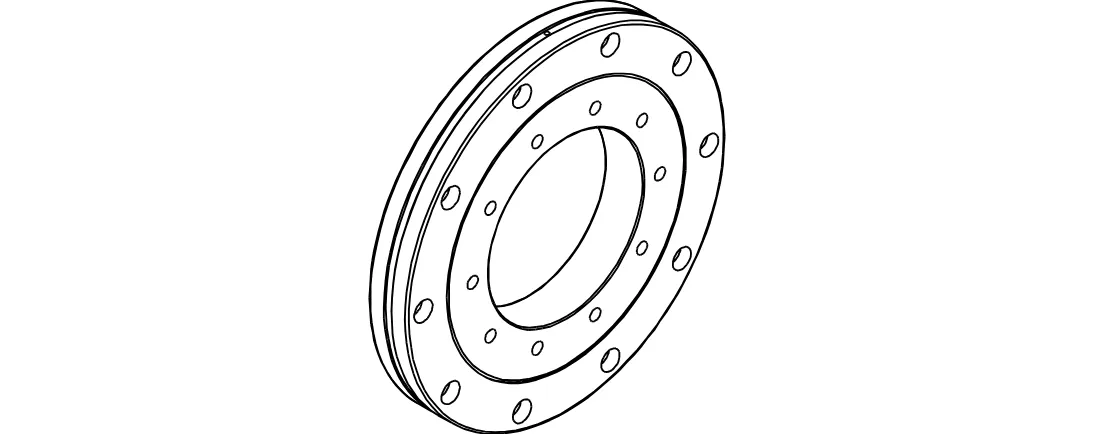

IKO CRBFV8022ADUUT1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Sealed, Pre Load, Counter Bored Mounting Holes in Opposite Direction
(BRAND)：IKO
(Availability)：In Stock
Order Number
CRBFV8022ADUU
Shaft Diameter
80
mm
Inside Diameter
80
mm
Outer Diameter
165
mm
Width
22
mm
Min.Chamfer
0.6
mm
Min.Chamfer
1.0
mm
Basic dynamic load rating
51100
N
Basic static load rating
72000
N
Diameter
97
mm
Diameter
148
mm
InnerRmounting
10-5.5, Counterbore9.5 depth5.4
OuterRmounting
10-5.5, Counterbore9.5 depth5.4
Mass
2.60
kg
